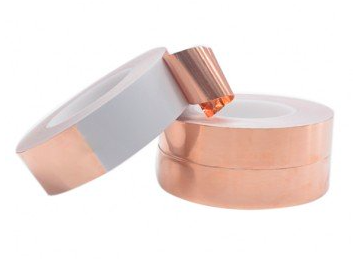

نوار چسب رسانا عرض 5mm ساخته شده از مس - مقاوم در برابر حرارت

نوار چسب رسانا عرض 5mm ساخته شده از مس - مقاوم در برابر حرارت

Features :
Material: CU 99.98%
substrate thickness: 0.018mm -0.05mm
Adhesive thickness: 0.035mm
Colloid composition: conductive adhesive (heat-sensitive acrylic adhesive)
Adhesion: 1.5 ~ 1.3kg / 25mm
Temperature resistance -10 ℃ --- 120 ℃
Velocity 4.5 ~ 4.8kg / mm
Elongation Rate 7-7% ~ 3-4%

Note:
1. Test conditions for the room temperature 25 ℃, relative humidity below 65 ℃ using the United States ASTM-D1000 detected.

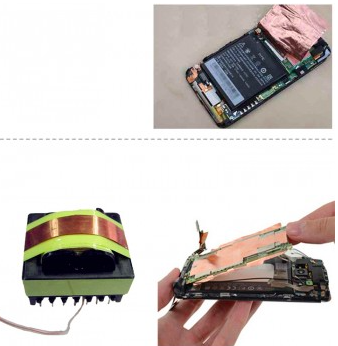

2. The product is mainly used to eliminate electromagnetic interference EMI, isolation of electromagnetic waves on the human body hazards, mainly used in computer peripheral wire, computer monitors and transformer manufacturers.
3. Is divided into double-sided conductive and single-sided conductive.

Application:

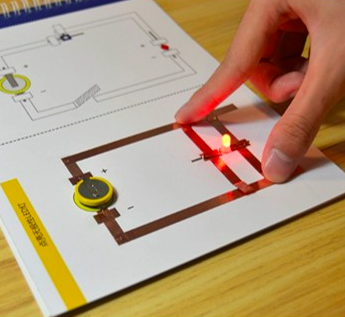

This product is used for electromagnetic interference has a better shielding effect, for the ground electrostatic discharge has a good performance, while the product is still used for soldering purposes
