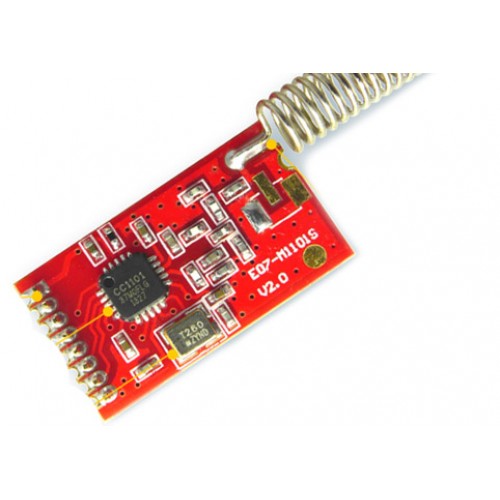

ماژول رادیو وایرلس CC1101 - فرکانس 433M 10mW با برد 500 متر
Supports 2-FSK, 4-FSK, GFSK, MSK and OOK, ASK flexible waveform shaping.
ماژول رادیو وایرلس CC1101 - فرکانس 433M 10mW با برد 500 متر
Supports 2-FSK, 4-FSK, GFSK, MSK and OOK, ASK flexible waveform shaping.
Working frequency: 300 ~ 348MHz, 387 ~ 464MHz and 779 ~ 928MHz.
High sensitivity (1.2KBaud, 433MHz, 1% packet error rate conditions-112dbm).
Low power consumption (1.2KBaud, 433MHz for the next RX 15mA)
Programmable up to +12 dbm output power under all supported frequencies.
0.6 ~ 500KBaud programmable data rates.
Efficient SPI interface, the use of a "burst" data transmission can be programmed for all registers.
64-byte transmit / receive FIFO, users can design efficient programming buffer in order to achieve the fastest baud rate.
Quick locking frequency synthesizer and 90μs settling time make it suitable for many hopping systems.
Provide flexible support for packet-oriented systems to support the sync word detection, address check, flexible packet length and automatic CRC processing chip.
Address and CRC check function and multipoint communication address control.
Programmable channel filter bandwidth.
Programmable carrier sense (CS) indicator.
Programmable Preamble Quality Indicator (PQI), a pseudo-random noise for enhanced protection sync word detection.
Support before sending automatic clear channel assessment (CCA) (for carrier sense system)
Support link quality indication for each packet (LQI).
Optional automatic data bleaching and go white (de-whitening).
Standard 1.27 DIP spacing interfaces for embedded applications.
125 selectable operating channels to meet the multi-point communications and frequency hopping communication needs.
1.8V~3.6V wide operating voltage.
Typical applications
Vehicle monitoring, remote control, telemetry, small wireless network, wireless exceeded, building automation, logistics and asset management, electrical safety, smart home, industrial data acquisition systems, fire safety systems, robot control, wireless 232 \ 485 \ 422 data communications.
Use Introduction
CC1101 module requires the use of an external microcontroller driven communications interface for the SPI. GDO0 module has GDO2 and two pins, different information can be external output.
Voltage: 1.8--3.6V
Interface: SPI
Modulation System:ASK/OOK/MSK/2-FSK/4-FSK
Carrier Frequency: 433MHz(other ISM band such as 868M/915M can be Supported)
high sensitivity :1.2KBaud,433MHz
Transmission Rate:0.6~500KBaud
Separate 64-byte RX and TX data FIFO
Automatic Cleaning Channel Access before transmission (CCA)
Support Carrier Sense System
Pitch: 1.27mm DIP interfaces for embedded applications
Pin definition: 1 VDD, 2 GDO0, 3 CSN, 4 SCK, 5 MOSI, 6 GDO1, 7 GDO2, 8 GND
Size: 22mm(length)*12mm(width)
