Description

• Wheatstone bridge sensor
• Rated output: 600 μV/V
• Supply voltage: 3 -10 V DC
• RoHS compliant

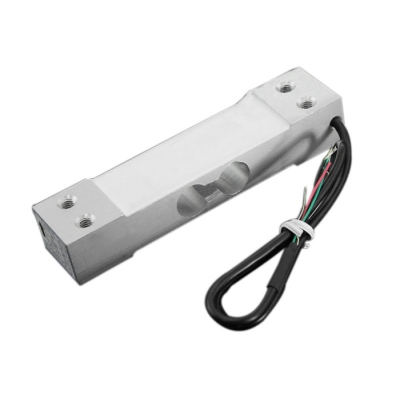

Description

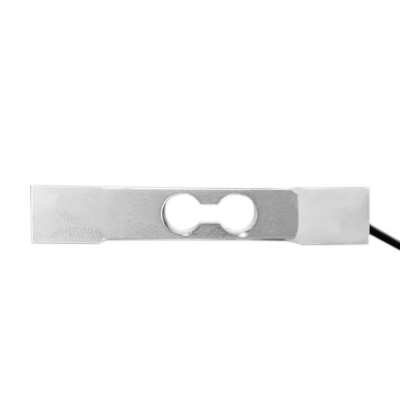

• Weight sensor (Load cell) 0-10kg
• Rated output(MV/V): 2.0c2±0.15
• Accuracy class: C2
• Capacity: 10kg

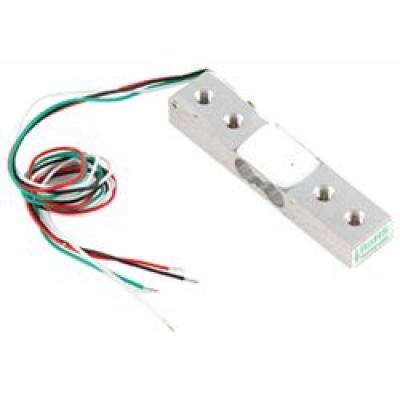

Description

• Capacity: 20kg
• Wheatstone bridge sensor
• Small size: 55.25mm x 12.7mm x 12.7mm
• Plugs into the Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface
• Compensated temperature range: -10°C to +40°C
• Operating temperature range: -20°C to +55°C
• RoHS compliant

Description

• Weight sensor (Load cell) 0-20kg
• Rated output(MV/V): 2.0c2±0.15
• Accuracy class: C2
• Capacity: 20kg

Description

• Weight sensor (Load cell) 0-40kg
• Rated output(MV/V): 2.0c2±0.15
• Accuracy class: C2
• Capacity: 40kg

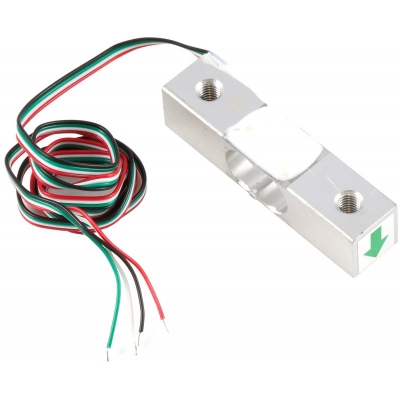

Description

• Capacity: 5kg
• Wheatstone bridge sensor
• Small size: 55.25mm x 12.7mm x 12.7mm
• Plugs into the Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface
• Compensated temperature range: -10°C to +40°C
• Operating temperature range: -20°C to +55°C
• RoHS compliant

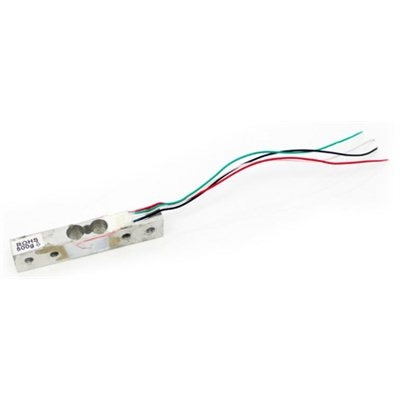

Description

• Output sensitivity: mv/v 0.5±0.1
• Capacity: 500g
• Green: Sig + white:Sig -
• Recommended excitation voltage 5v

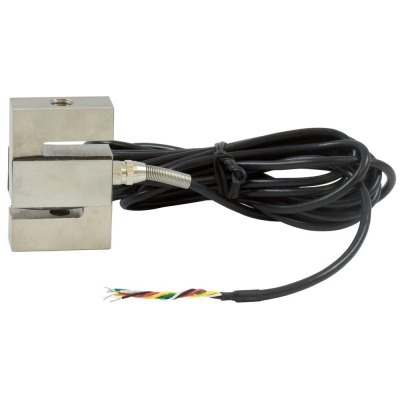

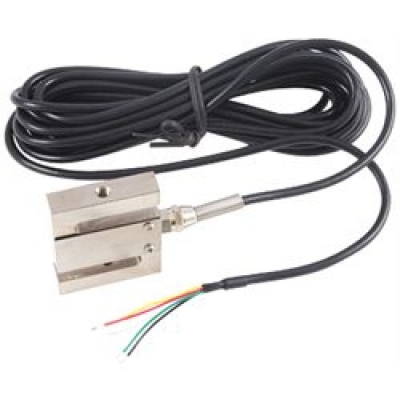

Description

• Measures compressive or tensile force
• Wheatstone bridge sensor
• Maximum load capacity: 500 kg
• RoHS compliant

Description

• Weight sensor (Load cell) 0-50kg
• Rated output(MV/V): 2.0c2±0.15
• Accuracy class: C2
• Capacity: 50kg

The DFRobot Vibration Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is propotional with the strength of vibration.So you can know the extent of vibration. Different from digital vibration sensor that only accounts times, this analog one can tell extent of vabiration.

Description: A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It’s so bad!

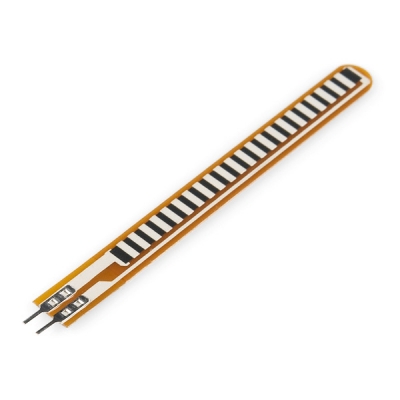

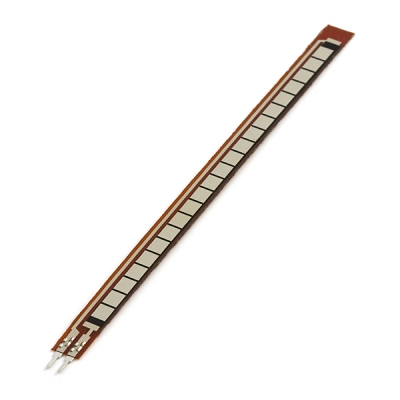

Description: A simple flex sensor 4.5" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It’s so bad!

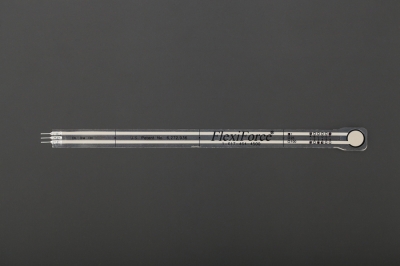

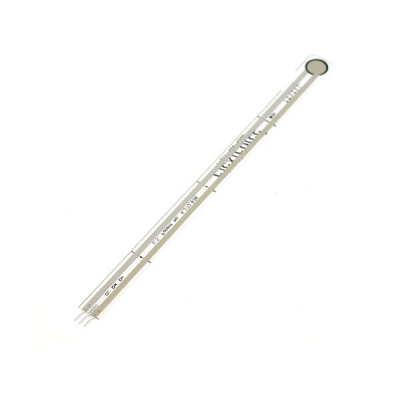

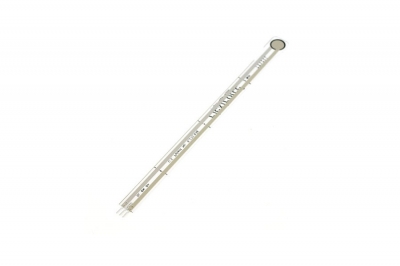

Description: This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensor’s resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.

Description: This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensor’s resistance. Pressing lightly, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.

Description: This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensor’s resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.

Description: This very long force sensitive resistor - over 2 feet - has a sensing area of 0.25x24". This FSR from Interlink Electronics will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

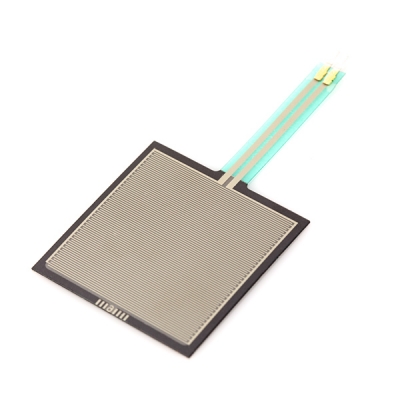

Description: This is a force sensitive resistor with a square, 1.75x1.5", sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

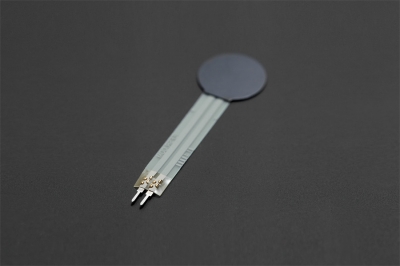

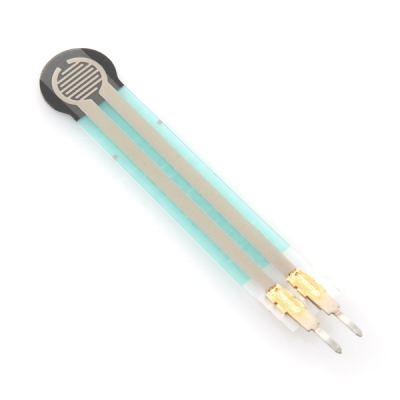

Description: This is a force sensitive resistor with a round, 0.5" diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

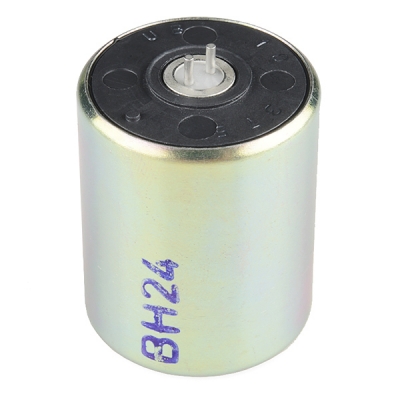

Description: Need to put your finger on the pulse of the Earth? Did I just blow your mind? A geophone works by translating ground movement into voltage, which can easily be read by a microcontroller. The SM-24 geophone element is designed to offer the highest performance in seismic exploration based upon field-proven I/O Sensor technology. Low distortion, combined with excellent specifications, provide high-fidelity data. Basically, it’s a super low frequency microphone for the ground.

Description

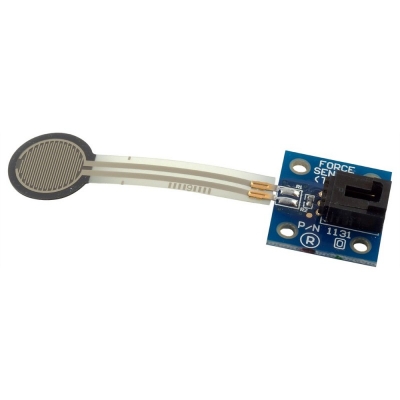

• Single-zone force sensing resistor
• Device has a 5.6 mm diameter active area and is available in 4 connection options
• Part of the single zone Force Sensing Resistor family
• RoHS Compliant

Description

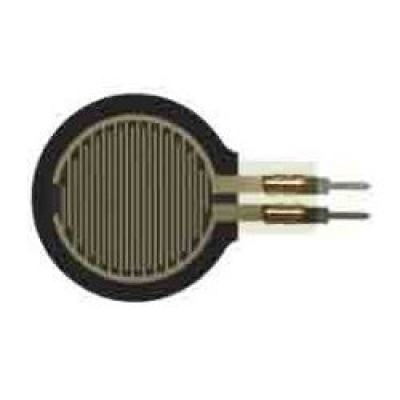

• Single-zone force sensing resistor
• Device has a 14.7 mm diameter active area and is available in 4 connection options
• Part of the single zone Force Sensing Resistor family
• RoHS Compliant

Description: This wide bar load cell (sometimes called a strain gauge) can translate up to 10kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

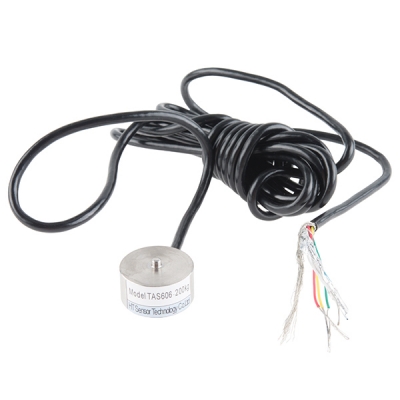

Description: This disc load cell (sometimes called a strain gauge) can translate up to a whopping 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the disc. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Description: This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year’s resolutions, and then forget about a month later). This sensor can measure up to about 110 pounds. Check the video below for a simple explanation on how these work and how to use them.

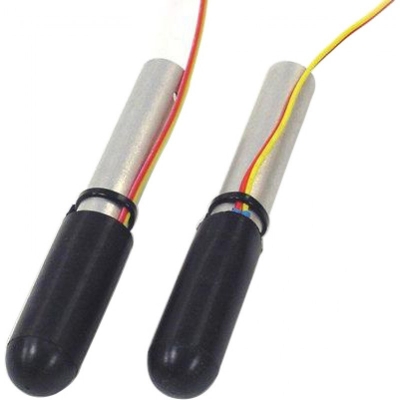

Description

• Includes two sensors, hexapod foot caps, rubber bumpers, and hubs
• Compatible with the AH3-R and 3DOFA legs
• Comes in a pair

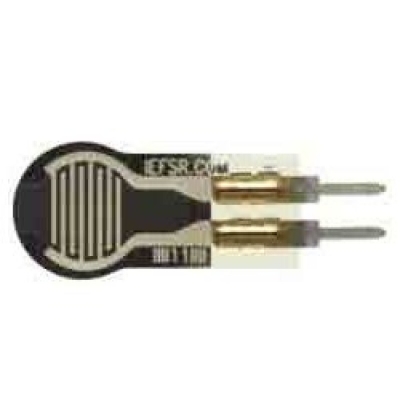

Description: This is a small force sensitive resistor. It has a 0.16" (4 mm) diameter active sensing area. This FSR from Interlink Electronics will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR, its resistance will be larger than 1MΩ, with full pressure applied the resistance will be 2.5kΩ.

Vibration Sensor Voltage Through Hole PC Pins

Description

• Measures forces up to 2kg
• Current consumption at Max load: 1.45mA
• Comes with a 60cm Sensor Cable and 2 Rubber discs
• RoHS compliant

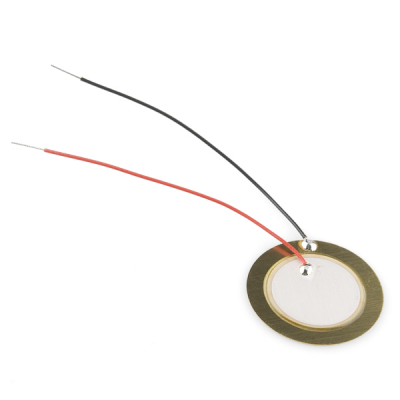

Description: Piezo elements come in handy when you need to detect vibration or a knock. You can use these for tap or knock sensors pretty easily by reading the voltage on the output. They can also be used for a very small audio transducer such as a buzzer.
