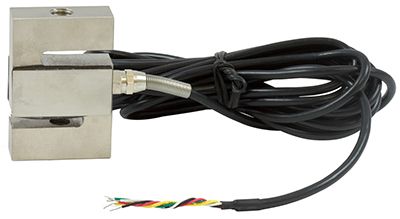

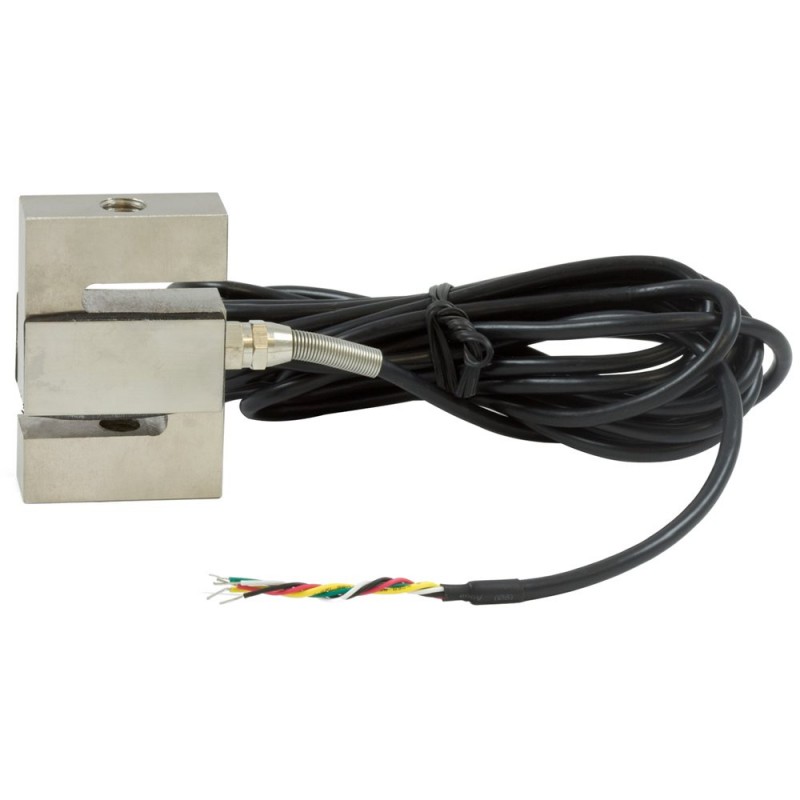

500Kg S Type Load Cell
Description
• Measures compressive or tensile force
• Wheatstone bridge sensor
• Maximum load capacity: 500 kg
• RoHS compliant
500Kg S Type Load Cell
Description
• Measures compressive or tensile force
• Wheatstone bridge sensor
• Maximum load capacity: 500 kg
• RoHS compliant
The 500Kg S Type Load Cell is a force sensing module - a carefully designed metal structure, with small elements called strain gauges mounted in precise locations on the structure. Load cells are designed to measure a specific type of force, and ignore other forces being applied. This S-Type load cell can be operated in compression or tension with up to 500 kilograms of force. The electrical signal output by the load cell is very small and requires specialized amplification.
Note: The calibration certificate is delivered with the product
Specifications
Sensor
• Sensor type: Compression/Tension load cell
• Weight capacity Max: 500 kg
• Maximum overload: 750 kg
Electrical
• Output impedance: 350 Ω
• Supply voltage: 5 - 12 V DC
Physical
• Operating temperature: -20° - 55°C
• Material: Alloy steel
• IP Rating: IP66
• Cable length: 3m
• Cable gauge: 5 x 22 AWG
