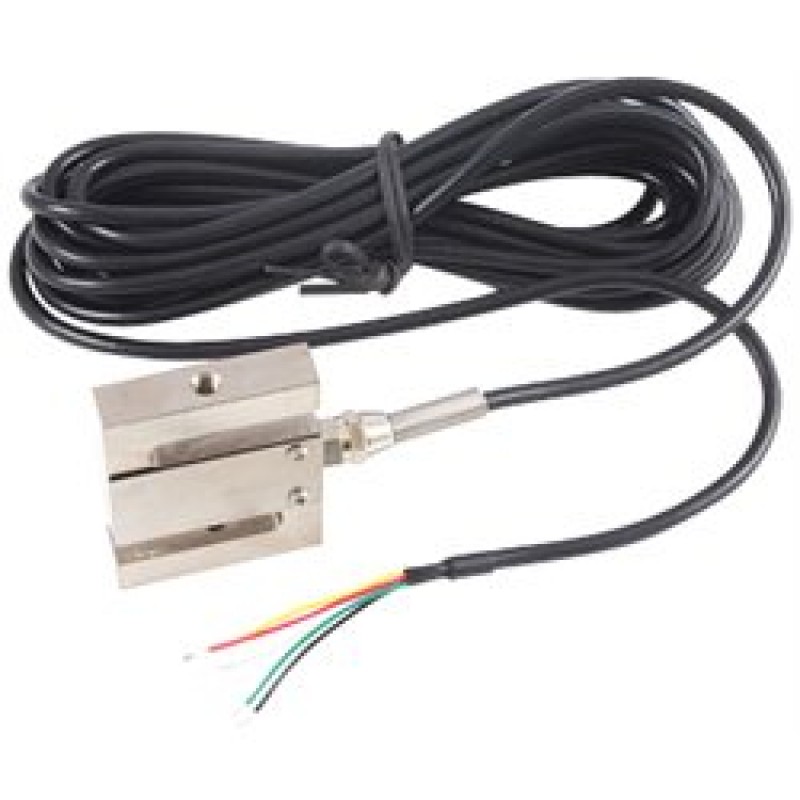

100 Kg Type S Load Cell
Description
- Maximum load capacity: 100 kg
- Wheatstone bridge sensor
- Individually calibrated at the factory
- Plugs into the Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface (not included)
- RoHS compliant
100 Kg Type S Load Cell
Description
- Maximum load capacity: 100 kg
- Wheatstone bridge sensor
- Individually calibrated at the factory
- Plugs into the Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface (not included)
- RoHS compliant

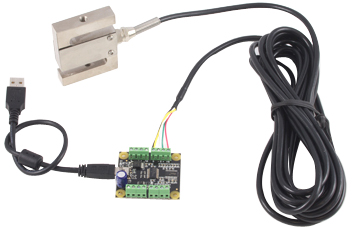

The 100 Kg Type S Load Cell is a carefully designed metal structure, with small elements called strain gauges mounted in precise locations on the structure. It is designed to measure a specific force, and ignore other forces being applied. The electrical signal output by the load cell is very small and requires specialized amplification. Fortunately, the PhidgetBridge (not included) will perform all the amplification and measurement of the electrical output. Please make sure to calibrate your load cell before using it. You can find information on how to calibrate the cell in the useful links.
.jpg)
Specifications
• Compensated temperature range: -10°C to +40°C
• Operating temperature range: -20°C to +55°C
• Safe overload: 120%F.S
• Maximum overload: 150%F.S
