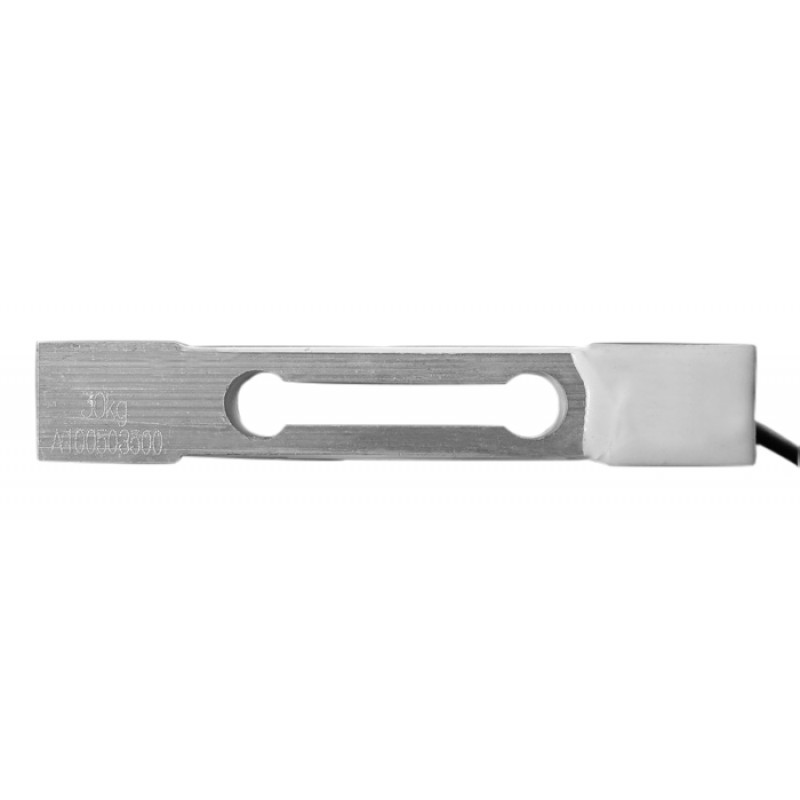

50kg Load Cell

50kg Load Cell

Description

• Weight sensor (Load cell) 0-50kg
• Rated output(MV/V): 2.0c2±0.15
• Accuracy class: C2
• Capacity: 50kg

The 50 kg Load Cell is applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell.

Specifications

• Maximum number of laod cell verification intervals(N max): 2000
• Minimum number of laod cell verification intervals(Vmin): EMax/5000
• Combined erro(%RO): <±0.030
• Creep(%RO/30min): 0.03
• Temperature effect on sensitivity(%RO/°C): 0.0016
• Temperature effect on zero(%RO/°C): 0.003
• Zero balance(%RO): 1.0
• Input resistance(O): 402±6
• Output resistance(O): 350±3
• Insulation resistance(MO<50V>): 5000
• Recommended excitation voltage(V): 10~15
• Compensated temperature range(°C): -10~+40
• Operating temperature range(°C): -35~+80
• Safe overload(%RO): 150
• Ultimate overload(%RO): 200
• Load cell material: Aluminium
• Plafform size: 350x350mm
• Connecting cable: ø4.2x350mm
• Method of connecting wire: Red(+),Black(-),Green(+),White(-)

Dimensions

·  Weight: 171 g
