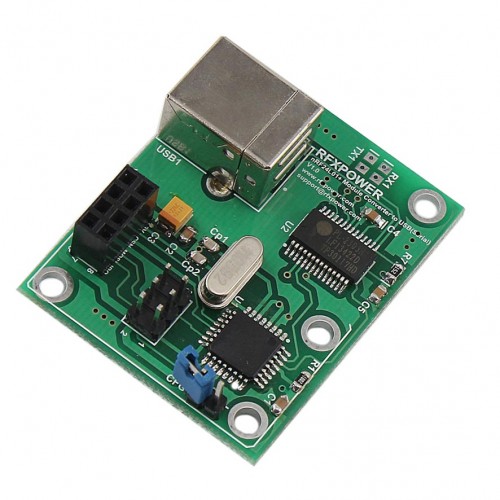

This module convert any nRF24L01P Module (Recommend XPOWER nRF24L01P) to USB Serial (Half-Duplex). It use FT232RL USB chip.
Configuration Mode (Short Circuit CFG header):
Short circuit CFG header and connect USB. Then connect to the module by the setting: 9600, 8 bit, 1 Stopbit, No Parity, Handshaking None.
Send these commands to configure the nRF24L01P settings: (Type HELP and enter to get information)
Check settings, type and enter VER?
Set CHANNEL 78 (0..125), type and enter CHANNEL:78
Set SPEED 1Mb (250kb, 1Mb, 2Mb), type and enter SPEED:1Mb
Set POWER -6db (0db, -6db, -12db, -18db), type and enter POWER:-6db
Set ACK Enable (1=enable, 0=disable), type and enter ACK:1
Set Serial Baudrate 9600 (300, 600,...,9600,...,230400), type and enter BAUD:9600
Set default, type and enter DEFAULT
EXIT, type and enter EXIT
Default settings is:
CHANNEL:100
SPEED:2Mb
POWER:0db
BAUD:9600
ACK:1
Normal Mode (Open Circuit CFG header):
Use in normal mode disconnect CFG header and connect USB. Send and receive data by the setting: BAUD, 8 bit, 1 Stopbit, No Parity, Handshaking None. The serial connection is half-duplex. No limited transferring data.
|
