Product Description:
1.Input voltage: DC 5-12V,not exceed 12V.
2.Wiring: Red line to positive,black line to negative and white line to computer main board to test speed.
3.Current Max: 0.5A load 6W
4.Suction: best diving, land use suction 0.5 meters (must be water)
5.Maximum lift: 2 m
6.Pump bottom with 2 soft suction cups. Diving can be placed out of the water, not self-priming.
7.Pump Size: 3.75 * 3.71 * 3.3cm.
8.Continuous working life (ie, 24 hours non-stop work) more than 20,000 hours. About 10 hours a day,pumps life is up to 8 years!
9.Inlet diameter 10mm and outlet diameter 9MM, at the bottom of the pump with 2 soft suction cups can be arbitrarily fixed.
10.Can be used as a submersible pump use, you can also leave the water to work.
11.ultra-quiet, 10cm 30dB noise index
12.Maximum flow：350L/H
Feature:

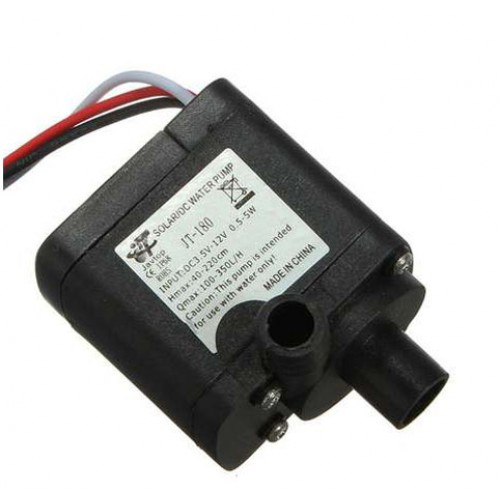

This C-JT180A is a Amphibious pump which has fully enclosed motor windings, using a unique formula resin casting, insulation, and never leaks. Corrosion. Please note:as diving the temperature should not exceed 45 degrees.And the voltage is best controlled at around 5V.More lower voltage more durable. Only for professional.
Application:
This pump is mainly used for fountains, cooling equipment, medical, and coffee machines. Pumps with environmentally friendly materials, aquarium best choice.
|
