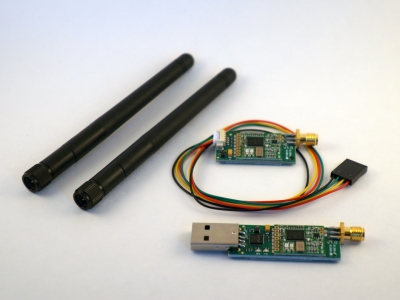

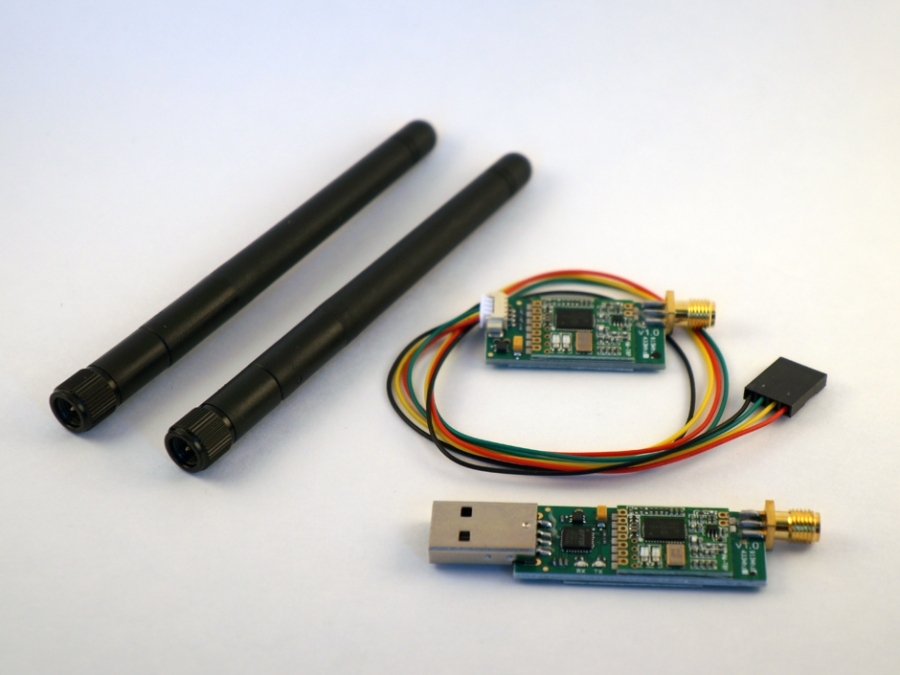

ماژول بیسیم 915MHZ - کیت تلمتری آردوپایلوت همراه با آنتنِ Dual TTL - یک جفت
ماژول بیسیم 915MHZ - کیت تلمتری آردوپایلوت همراه با آنتنِ Dual TTL - یک جفت
The RCTimer telemetry system is based on the telemetry system from 3DRobotics and is 100% compatible with the ArduPilot Mega (APM) and ArduFlyer autopilots. The system was designed as an open source Xbee replacement radio set, offering a lower price, longer range (up to approximately one mile) and superior performance to Xbee radios. The RCTimer telemetry system operates at 915Mhz which is part of the unlicensed ISM (Industrial, Scientific, and Medical) band in the US. The system includes a serial board (for the air) and USB board (for the ground). The system provides a full-duplex link using HopeRF HM-TRP modules running custom, open source firmware. Interface to the module is via standard 5V-tolerant TTL serial / FTDI USB serial.
Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through the radio configurator (download link below) and AT commands.
Features & Details:
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier to achieve even longer range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on the HopeRF HM-TRP radio module, featuring the SiLabs Si1000 RF microcontroller
