The Perfect FPV System for your drone - It's Reliable and GPS Safe!!
For a FPV system our requirement is simple, we want smooth and reliable video feeds on the monitor, that's all. However, it's easier said than done, when we look deeper into FPV System, we found a lot of problems, mostly about frequency jamming on Transmitter signal, GPS signal and the FPV signal, it's a pain to find the perfect solution. Finally we found this DJI AVL58 FPV System can do the job pretty well, it's a 500mw FPV system with stable transmission of radio frequency which means it will not jam GPS signal and Transmitter signal, effective range in open space is about 1000 meters, or 100-200m in city areas, this is more than enough for most people.

This system has a Transmitter and Receiver and a bunch of wires, those wires were made for Go Pro cameras and T-Join batteries. To get the system to work, you will need a Monitor, a Go Pro Hero Camera and Two 11.1V Li-PO Battery, and you need your own Tripod for the Monitor (Otherwise who will hold the camera for you?).

About the monitor, it should have a yellow video RCA connector (sometimes called phono connector or cinch connector) and it should take 12V power, so you can power up the Receiver Module and this Monitor with the same 11.1V Li-Po Battery. We have do something on the transmitter cable (soldered 3S balance plug and a white plug for camera), it should be best for most people.
Transmitter Module - Put on the Drone
Came with a 3S White Balance Plug, power it with the same Li-Po battery on the drone.



WARNING
NEVER CONNECT TRANSMITTER TO BATTERY WITHOUT ANTENNA



Receiver Module - Connect them to the TV Monitor
Output on a RCA connector, make sure your TV monitor has a yellow RCA connector, you should get the image.






Very good quality IC chip and circuit design, proven to be GPS Safe
Why the DJI AVL58 FPV has a higher price tag than other FPV System? Because it has much better stability on radio transmission that won't jam with other radio device, and it's clean 5.8Ghz radio frequency module, that cost a lot to make.






DJI Clover Leaf Antennas Included!!
Believe it or not, Antenna is the Heart and Soul for a FPV System, with a good antenna, you won't notice anything wrong. If you use a cheapy antenna, you just don't get any image 3 meters away, that's terrible. This DJI Clover Leaf is a Good Antenna, we never switch to other after we tried them.



Monitor with built-in receiver - Boscam 7" Monitor (* sold separately)
This is a monitor for lazy guys, it has a built-in 5.8Ghz Video Receiver and Lithium Battery for 2 hours of operation, the Monitor is the Video Receiver.




WARNING
NEVER CONNECT TRANSMITTER TO BATTERY WITHOUT ANTENNA

DJI AVL58 FPV System Specifications :
Transmission distance: 1.2km
Transmit power: 28dBm ± 1dBm
Receiver sensitivity:-90dBm ± 2dBm
Working channel:
CH1: 5705MHz CH5: 5885MHz
CH2: 5685MHz CH6: 5905MHz
CH3: 5665MHz CH7: 5925MHz
CH4: 5645MHz CH8: 5945MHz
Optimum temperature range: -20 ℃ ~ 70 ℃
Dimension : 50mm x 30mm x 22mm (TX); 55.5mm x 48mm x 17mm (RX)
Weight : 39g (TX) / 49.5g (RX)
(Note : TX module with antenna is about 60g, make sure your drone can carry this.)
Operating voltage : 3S-6S Li-Po (TX), 3S Li-Po (RX)
Operating Current : 575mA ± 50mA @ 12V (TX); 90mA ± 10mA @ 12V (RX)

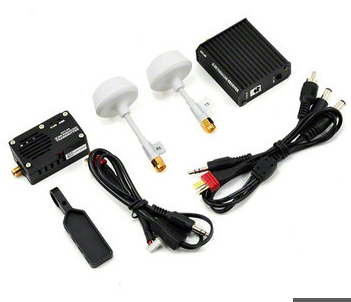

This package includes :
1. DJI AVL58 Transmitter Module
2. DJI AVL58 Receiver Module
3. Connector Cable for TX Module
(one plug is for connecting Go Pro, one plug is a 3S balance plug to connect drone's battery)
4. Connector Cable for RX Module
(one plug is RCA plug for video and a cable with T-Join to Two DC 12V plugs)
5. One set of DJI Clover Leaf Antenna (TX and RX)
6. Manual is NOT included
(because DJI did not make one and we find it doesn't need one too, you just need a Connection Diagram below)





Connection Diagram with normal TV monitor (click to enlarge)
