تقویت کننده 2.5وات فرکانس 5.8GHz دیجیتال FPV
تقویت کننده 2.5وات فرکانس 5.8GHz دیجیتال FPV

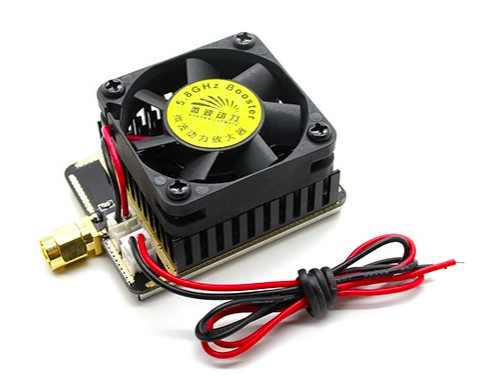

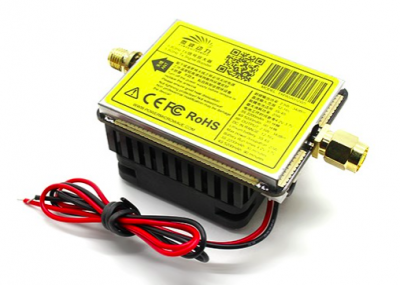

The TXPA58002W5 5.8GHz AV Transmitter Signal Booster is a highly efficient and compact unit designed to increase the performance and range of your existing 5.8GHz AV transmitter.
The system is easy to install, simply remove the antenna from your transmitter and connect the signal booster via the RP-SMA connector. Your existing antenna is than placed on the output side of the signal booster, it couldn't be simpler!
The signal booster has an input voltage range of 11.1 ~ 14.8v (3-4s LiPoly) and requires a battery connector of your choice.
Features:
• Increases range of your AV transmitter
• Highly efficient and compact
• Active magnetic fan for excellent cooling
• Connects in line with your existing transmitter
• Simple and easy to install
Specs:
Max Input Power: 600mW / 27.8dBm
Input Voltage: 3 ~ 4s LiPoly
Frequency Band: 5 ~ 6 GHz
Input Connector: RP-SMA
Output Connector: RP-SMA
Max Output Power: 2500mW /+34 dbm
Power dissipation: 20W
Weight: 50g
