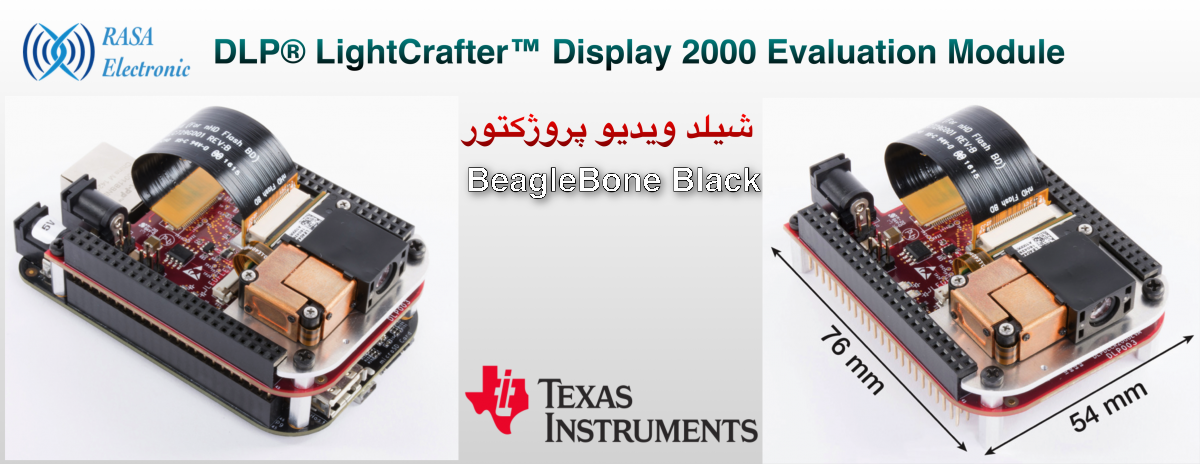

شیلد ویدیو پروژکتور بیگل بن بلک DLP® LightCrafter™ Display 2000 Evaluation Module

Description

DLP® LightCrafter Display 2000 is an easy-to-use, plug-and-play evaluation platform for a wide array of ultra-mobile and ultra-portable display applications in consumer, wearables, industrial, medical, and Internet of Things (IoT) markets. The evaluation module (EVM) features the DLP2000 chipset comprised of the DLP2000 .2 nHD DMD, DLPC2607 display controller and DLPA1000 PMIC/LED driver. This EVM comes equipped with a production ready optical engine and processor interface supporting 8/16/24-bit RGB parallel video interface in a small-form factor.


• Get started with DLP Pico technology
• Example display applications
• All DLP Pico evaluation modules and promotions

Features

• Most affordable way for developers to evaluate high-performing DLP display technology
• Plug and play DLP nHD optical engine that supports up to 30 lumens
• I2C and 8/16/24-bit parallel RGB video interfaces to support virtually any low cost host processor
• Compact form factor
• BeagleBone Black compatibility out of the box

What's Included

• Included: EVM (Assembled with mechanicals and Young Optics optical engine)
• Not Included: External 5V, 3A power supply
