برد بیگل بن سبز وایرلس (ساخت seeed تکنولوژی)

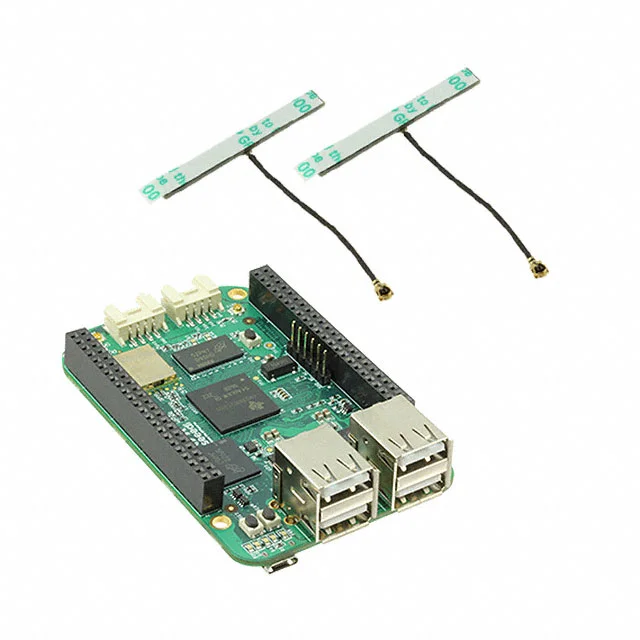

AM3358BZCZ BeagleBone Green Wireless (BBGW) Sitara™ MPU ARM® Cortex®-A8 Embedded Evaluation Board
برد بیگل بن سبز وایرلس (ساخت seeed تکنولوژی)
Seeed Studio BeagleBone® Green Wireless is a joint effort by BeagleBoard.org and Seeed Studio. Based on the open-source hardware design of BeagleBone® Black, the newest Seeed Studio BeagleBone® Green Wireless has added two Grove connectors, making it easier to connect to the large family of Grove sensors. It is the first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone® community.
Features
-
The first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone® community
-
Built-in 2.4 GHz TI WLinkTM8 Module with two antenna solution
-
On-board chip antenna
-
IEEE 802.11b/g/n compliant
-
FCC, CE, and TELEC certified
-
Supports AP+STA mode of communication
-
Comply with Bluetooth Advanced Audio Distribution Profile (A2DP)
-
Supports MRAA library
Boards Comparison
|
BeagleBone® Black MSRP: USD 55 |
Seeed Studio BeagleBone® Green MSRP: USD 44 |
Seeed Studio BeagleBone® Green Wireless MSRP: USD 52.9 |
|---|---|---|
| AM3358 1GHz ARM® Cortex-A8 | AM3358 1GHz ARM® Cortex-A8 | AM3358 1GHz ARM® Cortex-A8 |
| 512MB DDR3 RAM | 512MB DDR3 RAM | 512MB DDR3 RAM |
| 4GB 8-bit eMMC on-board flash storage | 4GB 8-bit eMMC on-board flash storage | 4GB 8-bit eMMC on-board flash storage |
| 3D graphics accelerator | 3D graphics accelerator | 3D graphics accelerator |
| NEON floating-point accelerator | NEON floating-point accelerator | NEON floating-point accelerator |
| 2x PRU 32-bit microcontrollers | 2x PRU 32-bit microcontrollers | 2x PRU 32-bit microcontrollers |
| USB client for power & communications | USB client for power & communications | USB client for power & communications |
| 1x USB host | 1x USB host | 4x USB2.0 host |
| Ethernet | Ethernet | Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE |
| 2x46 pin headers | 2x 46 pin headers | 2x 46 pin headers |
| HDMI port | 2x Grove connectors | 2x Grove connectors |
