مبدل USB2.0 to m-SATA مینی کامپیوتر آپ برد

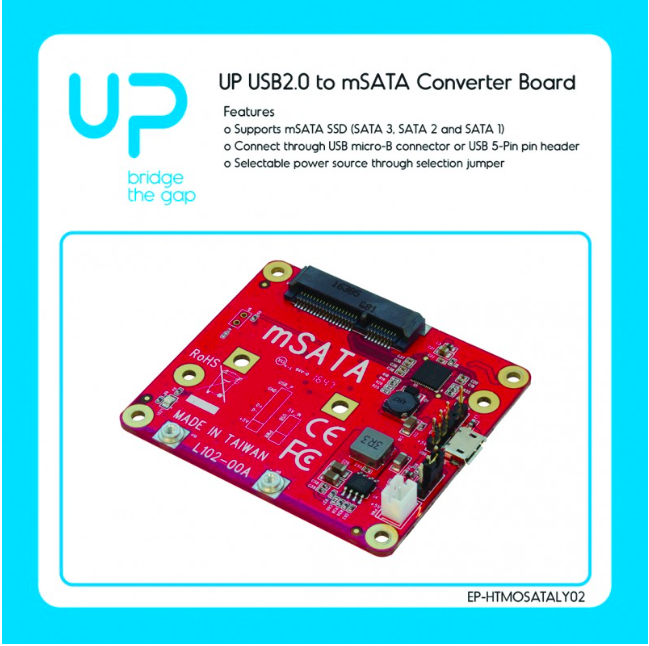

UP USB2.0 to m-SATA Converter board
EP-HTMOSATALY02
New product
UP USB2.0 to m-SATA Converter board with mounting accessory, support SATA I/II/III m-SATA SSD, fully ROHS/REACH compliant.
( no additional power supply required)
مبدل USB2.0 to m-SATA مینی کامپیوتر آپ برد
DATA SHEET
Accessory type | General accessory |
Supported for UP | UP |
MORE INFO
Supports SATA III, SATA II and SATA I mSATA SSD
o Compliant with Serial ATA Specification Revision 2.6
o Supports Serial ATA transfer rate of 6.0 Gbps
o Supports ATA/ATAPI Packet Command Set
o Supports ATA/ATAPI LBA 48 Addressing mode
o Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate
1.5/12/480 Mbps)
o Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
o Compliant with Enhanced Host Controller Interface Specification for USB Rev
0.95
o Both USB micro-B connector and USB 5Pin Pinheader on board for UP board
connection
o USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND
oJumper selection either power wafer of external 5V sufficient power or 5V USB
bus power to PCBA & mSATA SSD
o On board activity LED for mSATA accessing
o Includes 2 mSATA screws for the retention of mSATA module
o Includes HAT mounting accessory of standoff & nut & screw
o Fully RoHS compliant
