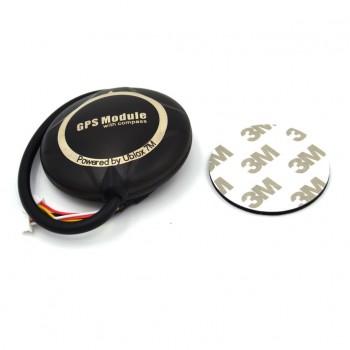

ماژول GPS UBLOX NEO-7M همراه با قطب نما ویژه APM

ماژول GPS UBLOX NEO-7M همراه با قطب نما ویژه APM

NEO-7m
U-blox GPS multifunction 7M NEO-7 series is u-blox Standalone GPS / GNSS module, the latest products. NEO-7 series with industry recognized NEO package positioned to provide high sensitivity in the shortest possible time capture. NEO-7 series can have a maximum sensitivity in the system power consumption while maintaining a minimum. NEO-7N provide the best RF performance and easier integration. Industry recognized NEO package makes previous generations NEO module can be easily transplanted. Advanced RF architecture and interference suppression to ensure that in weak GPS signal environments can achieve the best performance.

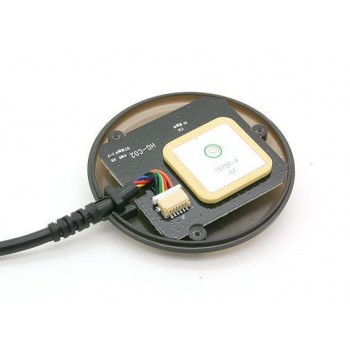

Ublox Neo 7M GPS module that includes an HMC5883L digital compass.

Receiver Type:
56- channel u-blox 7 engine
GPS L1 C / A, GLONASS L1 FDMA
QZSS L1 C / A
Hardware support for Galileo E1B / C, Compass
SBAS: WAAS, EGNOS, MSAS

The accuracy of GPS / GLONASS:
Positioning 2.5 m CEP / 4.0 m
SBAS 2.0 m CEP / na

Capture GPS / GLONASS:
Cold start: 29 s / 30 s
Auxiliary Start: 5 s / na
Reacquisition: 1 s / 3 s

Sensitivity GPS / GLONASS:
Tracking: -162 dBm / -158 dBm
Cold start: -148 dBm / -140 dBm
Warm start: -148 dBm / -145 dBm

Aid:
AssistNow Online
AssistNow Offline
AssistNow Autonomous
Compliance with OMA SUPL and 3GPP specifications

Oscillator: TCXO (NEO-7N), ordinary crystals (NEO-7M)
RTC crystal: Built
Interference: active CW detection and removal
Memory: onboard ROM (NEO-7M) or Flash (NEO-7N)
Antenna Support: active and passive antenna
The maximum update rate up to 10 Hz

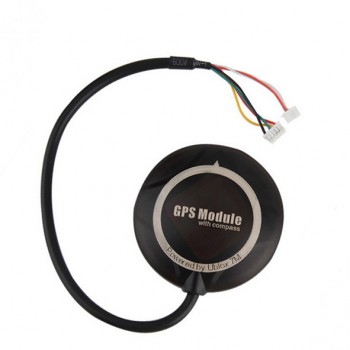

GPS line definition:
Black gnd
Red:vcc
Yellow:RX
Green:TX

Compass line definition:
White:SDA
Orange:SCL
