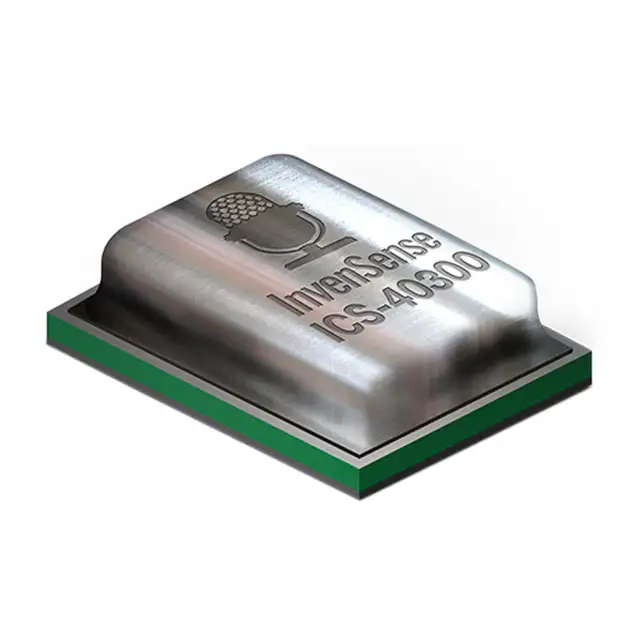

میکروفن MEMS مدل ICS-40300

میکروفن MEMS مدل ICS-40300

GENERAL DESCRIPTION
The ICS-40300* is a low-noise, high SPL MEMS microphone with extended low frequency response. The ICS-40300 consists of a MEMS microphone element and an impedance converter amplifier. The ICS-40300 low frequency response makes it an excellent choice for applications requiring precise phase matching. The ICS-40300 is pin compatible with the INMP401 and INMP411 microphones, providing an easy upgrade path.
The ICS-40300 has a linear response up to 130 dB SPL. It offers low frequency extension down to 6 Hz, resulting in excellent phase characteristics in the audio range. Low current consumption enables long battery life for portable applications.
The ICS-40300 is available in a 4.72 mm × 3.76 mm × 3.5 mm surface-mount package. It is reflow solder compatible with no sensitivity degradation.

APPLICATIONS
• Active Noise-Cancelling Headsets
• Teleconferencing Systems
• Studio Microphones
• Live Microphones
• Security and Surveillance
• Photoacoustic Gas Sensing
FEATURES
• 4.72 × 3.76 × 3.5 mm Surface-Mount Package
• Extended Frequency Response from 6 Hz to 20 kHz
• 130 dB SPL Acoustic Overload Point
• Sensitivity of −45 dBV
• ±2 dB Sensitivity Tolerance
• Omnidirectional Response
• High SNR of 63 dBA
• Low Current Consumption: <220 μA
• Single-Ended Analog Output
• High PSR of −80 dBV
• Compatible with Sn/Pb and Pb-Free Solder Processes
• RoHS/WEEE Compliant
