سنسور زاویه سنج سه محوره با تکنولوژی MEMS SCL3300-D01-1
سنسور زاویه سنج سه محوره با تکنولوژی MEMS SCL3300-D01-1

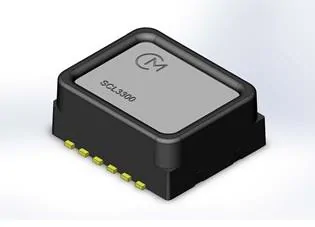

SCL3300-D01 3-axis inclinometer with angle output and digital SPI interface Features
3-axis (XYZ) inclinometer
User selectable measurement modes: 3000 LSB/g with 70 Hz LPF 6000 LSB/g with 40 Hz LPF 12000 LSB/g with 10 Hz LPF
Angle output resolution 0.0055°/LSB
−40°C...+125°C operating range
3.0V...3.6V supply voltage
SPI digital interface
Ultra-low 0.001 °/√Hz noise density
Excellent offset stability
Size 8.6 x 7.6 x 3.3 mm (l × w × h)
Proven capacitive 3D-MEMS technologyApplications SCL3300-D01 is targeted at applications demanding high stability and accuracy with tough environmental requirements. Typical applications include:
Leveling
Tilt sensing
Machine control
Structural health monitoring
Inertial measurement units (IMUs)
Robotics
Positioning and guidance systems
