ُرادار 24 گیگاهرتز آرایه ای با قابلیت آشکارسازی اهداف در فاصله 30 متر
سایر تصاویر محصول

ُرادار 24 گیگاهرتز آرایه ای با قابلیت آشکارسازی اهداف در فاصله 30 متر

رادار با قابلیت اندازه گیری فاصله/سرعت/زاویه/آشکار سازی حرکت/جهت حرکت

عملکرد مناسب در شب و روز و در هر شرایط محیطی(رطوبت/مه/غبار/برف/باران)



ُرادار 24 گیگاهرتز آرایه ای با قابلیت آشکارسازی اهداف در فاصله 30 متر

This is a 24Ghz vehicle mounted (Short Range Radar) millimeter wave radar with excellent performance in the industry. It’s measuring the distance, speed, angle, etc. Information by detecting the difference between the transmitted radio wave and the echo. It is of anti-collision function installed on low velocity vehicles, which satisfy the increasing needs of safety-assisted driving in the automotive industry.

Series:

24GHz MMW radar

Application:

FCW、RCW、Multi sensor fusion

Features:

  • Work in 24GHz Band for the detection of moving objects

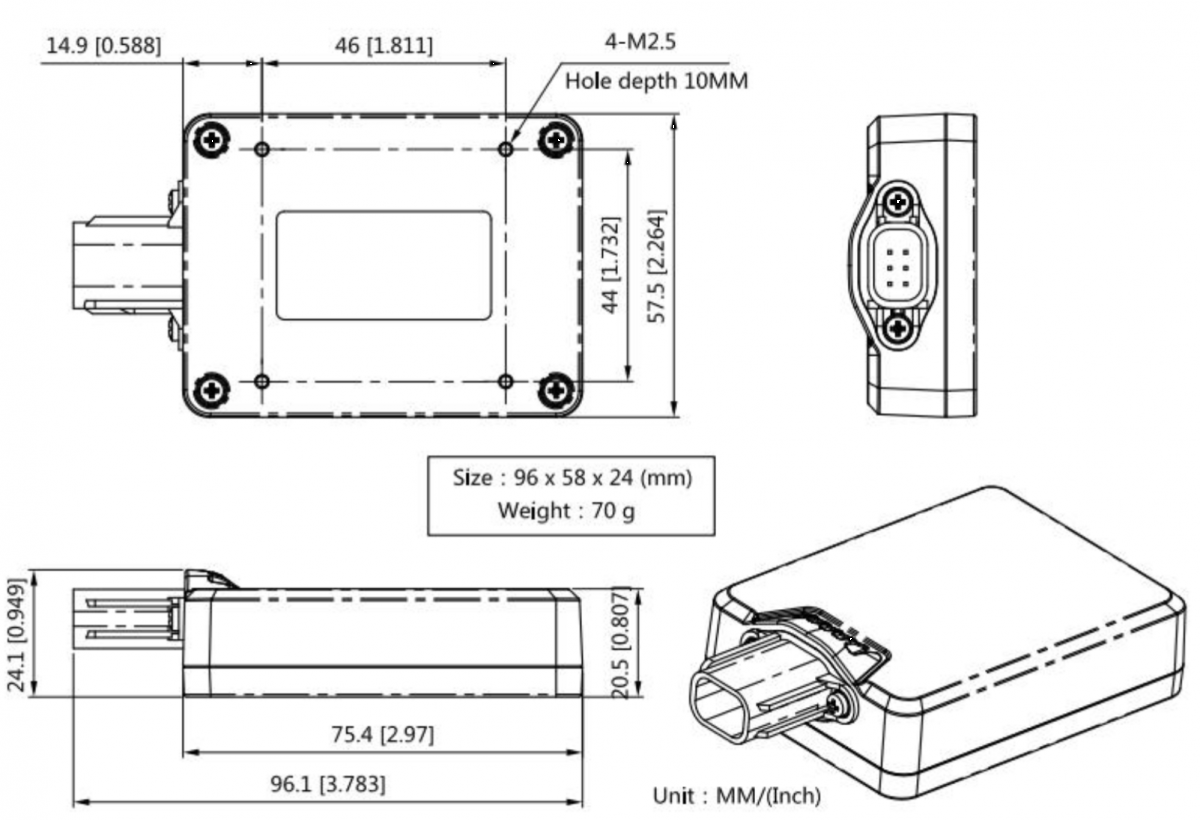

  • Compact size (96x58x24mm)
  • Accurately measure the direction, range, velocity and angle of moving targets
  • Protection class IP66 for outdoor use
  • Able to detect 8 moving targets simultaneously
  • Hige detection rate

کد راه اندازی با آردوینو بصورت رایگان در اختیار مشتری قرار داده می شود.

قیمت: 390,000,000 ریال
کد محصول SEN-MWE-14
وضعیت موجودی موجود
