برد دیسکاوری B-WB1M-WPAN1 با پردازنده STM32WB1MMC
STM32WB1MMC, STM32WB15 Bluetooth RF Nucleo Platform Evaluation Expansion Board
برد دیسکاوری B-WB1M-WPAN1 با پردازنده STM32WB1MMC
Description

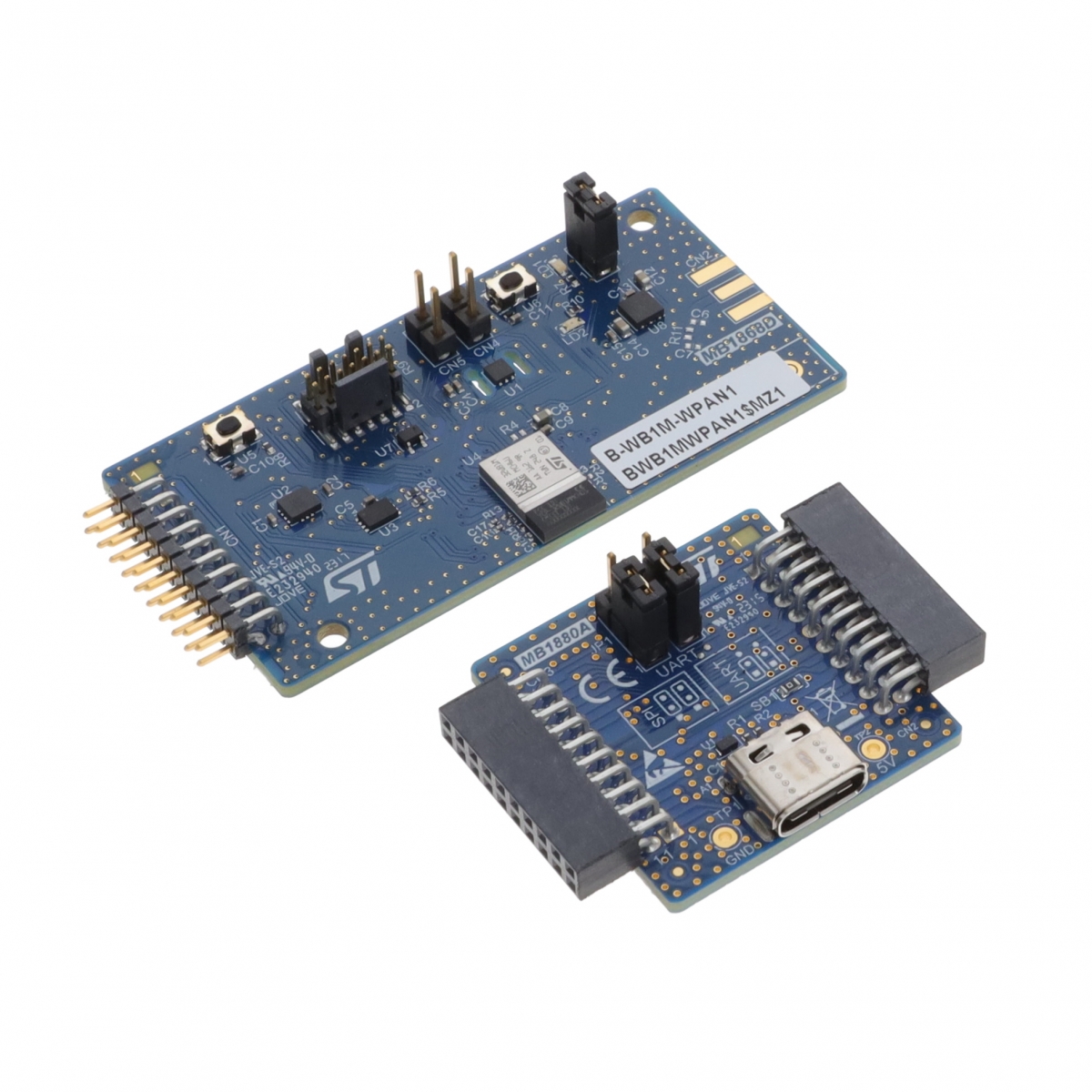

The B-WB1M-WPAN1 STM32WB connectivity expansion board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32WB series STM32WB1MMC microcontroller module.
The B-WB1M-WPAN1 product requires a separate probe for programming and debugging. The STLINK-V3SET debugger can be connected through a MIPI10/STDC14 cable.
The B-WB1M-WPAN1 STM32WB connectivity expansion board is provided with a USB Type-C® connector (for power only) on an add-on STMod+ adapter board.
The B-WB1M-WPAN1 product is provided with the STM32WB comprehensive software HAL library and various packaged software examples available with the STM32CubeWB MCU Package.
All features
-
STM32WB connectivity expansion board embedding an STM32WB1MMC module including:
- Ultra‑low‑power STM32WB15CCY dual‑core Arm® Cortex®‑M4/M0+, Bluetooth® Low Energy 5.4, AES‑256, featuring 320 Kbytes of flash memory and 48 Kbytes of SRAM in a WLCSP49 package
- RF transceiver multistandard radio Bluetooth® Low Energy, compliant with Bluetooth® specification 5.4 with 1 and 2 Mbit/s transfer rates
- 256‑Kbit serial I2C bus EEPROM
-
MEMS sensors from STMicroelectronics:
- Integrated high-accuracy temperature sensor
- 3D accelerometer and 3D gyroscope
- User LED
- User and reset push-buttons
-
Board connectors:
- MIPI® debug
- STMod+
- USB Type-C® for power only on add‑on STMod+ adapter board
- Flexible power supply options: external sources, or USB VBUS from the add‑on board
- Comprehensive free software libraries and examples available with the STM32CubeWB MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
