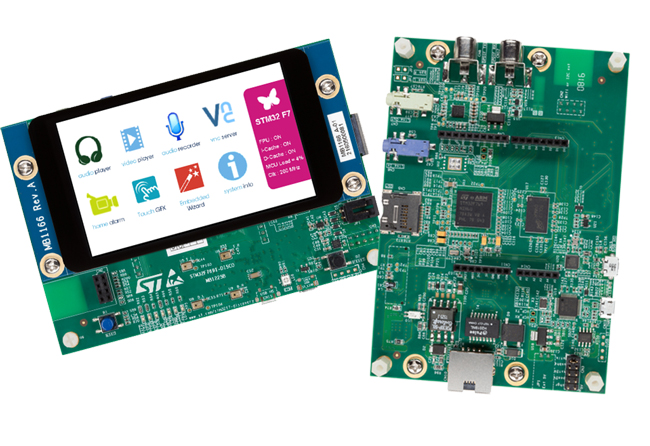

برد دیسکاوری STM32F769
Discovery kit with STM32F769NI MCU
برد دیسکاوری STM32F769
All features
- STM32F769NIH6 Arm® Cortex®‑M7 core-based microcontroller with 2 Mbytes of flash memory and 532 Kbytes of RAM, in a TFBGA216 package

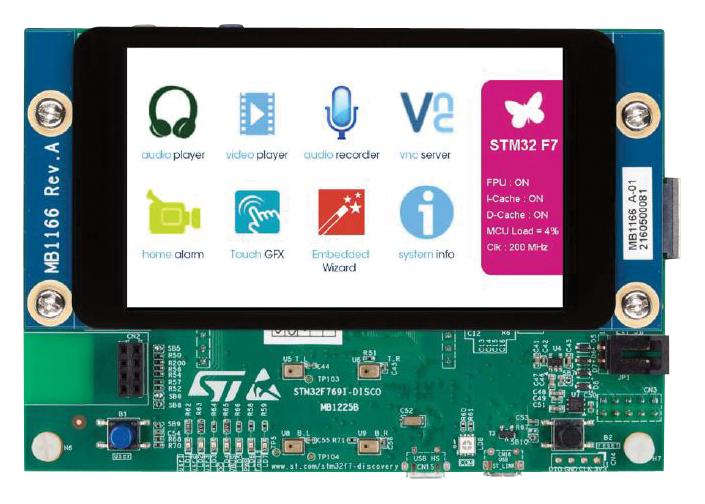

- 4-inch 800 x 472‑pixel capacitive touch TFT color LCD with serial interface (on STM32F769I-DISCO only)
- Optional display accessories: HDMI and DSI adapters
- SAI audio codec
- Four digital ST MEMS microphones on DFSDM inputs
- 128‑Mbit SDRAM
- 512‑Mbit Quad-SPI flash memory
- Reset and user push-buttons
-
Board connectors:
- MIPI DSI®
- SPDIF RCA input and output
- Audio line input and output jacks
- Stereo speaker output
- microSD™ card holder with an included card
- Wi‑Fi® or Ext-EEP daughterboard
- USB Micro-B
- USB Micro-AB
- IEEE-802.3-2002 compliant Ethernet
- ARDUINO® Uno V3
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
-
Flexible power-supply options:
- ST-LINK/V2-1 USB connector
- USB OTG HS connector
- 5 V delivered by RJ45 (Power over Ethernet)
- 5 V delivered by ARDUINO® or external connector
- USB charger
- Power over Ethernet based on IEEE 802.3af (powered device from 48 to 5 V, 3 W)
- External application power supply: 3.3 V and 5 V
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
