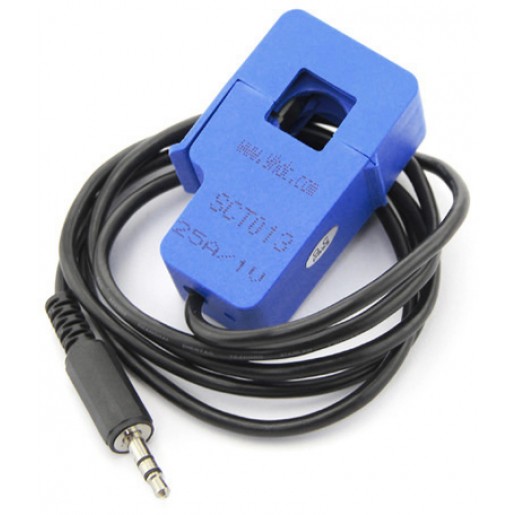

SeeedStudio Non-Invasive AC Current Sensor (25A Max)

SeeedStudio Non-Invasive AC Current Sensor (25A Max)

Description

• Non-invasive AC current sensor (25A max)
• Used for measuring alternating current
• Ferrite core material

The SeeedStudio Non-Invasive AC Current Sensor (25A Max) is a sensor used for measuring alternating current. It is particularly useful for measuring whole building electricity consumption (or generation for that matter). The split core type is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Applications:

• Suitable for the current measuring
• Monitoring and protection of AC motor
• Lighting equipment
• Air compressor

Specifications

• Input current: 0-25A AC
• Output mode: 0-1V
• Non-linearity: ±3%
• Build-in sampling resistance(RL): 74.4Ω
• Resistance Grade: Grade B
• Work Temperature: -25°C ~ 70°C
• Dielectric strength(between shell and output): 1000V AC/1min 5mA
• Leading Wire in Length: 1m
• Fire resistance property: In accordance with UL94-VO

Dimensions

·  Open size: 13mm x 13mm
