Octopus 30A Current Sensor Brick

Octopus 30A Current Sensor Brick

Description
 Current sensor brick
 Fast response and high sensitivity
 Simple drive circuit
 Stable and long life

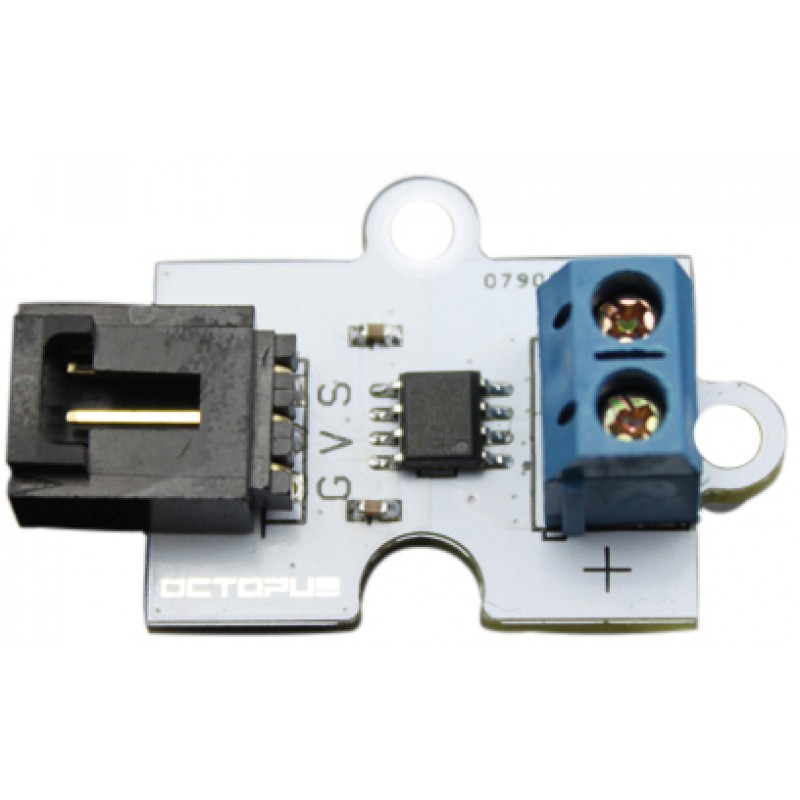

The Octopus 30A Current Sensor Brick is a sensor module based on ACS712 current sensor chip, used to detect the size of current. ACS712ELC-30A chip is capable of measuring +/- 30A with high accuracy.
What's Included
  1x Octopus current sensor
  1x Analog sensor cable
Specifications
  Use Chip: ACS712ELC-30A
  Measuring range: ± 30A
  Analog output: 66MA / V
 When current is not detected, the output voltage is VCC / 2
 Power supply needs: 5V
 Interface type: Analog
 Pin Definition: 1-Signal 2-VCC 3-GND
Supplier Product Code
 EF04004
