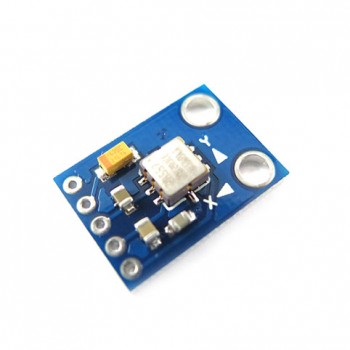

ماژول شتاب سنج دو محوره ADXL203CE
Description: Breakout board for the Analog Devices accelerometers in the E8 package. The ADXL203 is a solid state MEMS accelerometer with Analog output. The ADXL203 can measure both static and dynamic acceleration. This means the ADXL is suited well for sensing tilt (used in many Glove / Air Mouse applications) and for sensing brute acceleration (rocketry and general motion sensing applications).
Please refer to the datasheet for more information. Analog output sensors require a microcontroller that has an analog to digital converter (ADC)
ماژول شتاب سنج دو محوره ADXL203CE
Description: Breakout board for the Analog Devices accelerometers in the E8 package. The ADXL203 is a solid state MEMS accelerometer with Analog output. The ADXL203 can measure both static and dynamic acceleration. This means the ADXL is suited well for sensing tilt (used in many Glove / Air Mouse applications) and for sensing brute acceleration (rocketry and general motion sensing applications).
Please refer to the datasheet for more information. Analog output sensors require a microcontroller that has an analog to digital converter (ADC).
Board comes fully assembled and tested with ADXL203 sensor, 0.1uF filtering capacitors.
Not sure which accelerometer is right for you? Our Accelerometer and Gyro Buying Guide might help!
Dimensions: 0.70x0.70" (18x18mm)
Documents:
• ADXL E8 Breakout Schematic
• ADXL203 Data Sheet
• Analog Devices website (current datasheets and other info)
