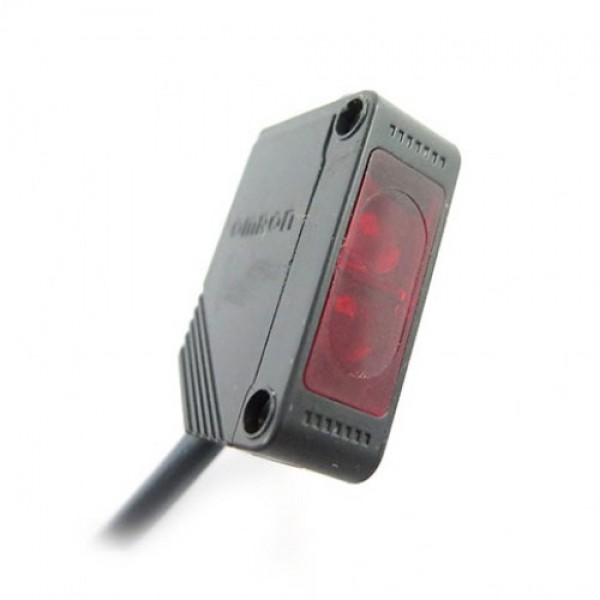

سنسور فاصله سنج نوری 0 تا 100سانتیمتری Omron

سنسور فاصله سنج نوری 0 تا 100سانتیمتری Omron

Features:
Sensing method:Diffuse-reflective
Sensing distance:0 m to 1 m (White paper 300*300mm)
Light source:Infrared LED (Emission wave length: 860nm)
Power supply voltage:12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
Current consumption:30mA DC Max.
Control output (Output type):NPN open collector output
Control output (Load current):0 to 100 mA
Control output (Residual voltage):(DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 100 mA)
Operation mode:Light-ON/Dark-ON selectable
Load power supply voltage:26.4 VDC Max.
Protective circuit:Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Mutual interference prevention
Response time 1ms Max.
Sensitivity setting:Single-turn adjustment
Ambient illuminance:Incandescent lamp:3000 lux Max., Sunlight:10000 lux Max.
Ambient temperature:Operating: -25 to 55 ℃
Storage: -40 to 70 ℃
Ambient humidity Operating: 35 to 85%RH
Insulation resistance:20 M OHM Min. at 500 VDC between charged parts and the case
Dielectric strength:1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
Vibration resistance:10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance:500m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC60529: IP67
