ماژول قطب نمای سه محوره - مگنومتر MAG3110

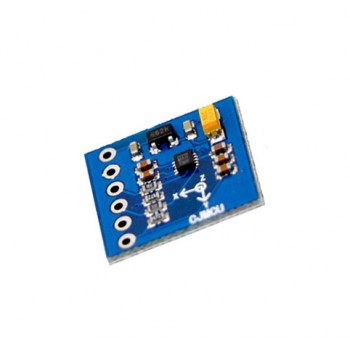

Description: Freescale’s MAG3110 is a small, low-power, digital 3-axis magnetometer. The device can be used in conjunction with a 3-axis accelerometer to produce orientation independent accurate compass heading information. It features a standard I2C serial interface output and smart embedded functions. It’s also a tiny QFN package which isn’t very easy to play with so here is our easy to use breakout board. This board breaks out all of the pins for the MAG3110FCR1 to a standard 0.1" header and also supplies the necessary filtering capacitors so that you can easily use it in your next navigation project.
ماژول قطب نمای سه محوره - مگنومتر MAG3110
Description: Freescale’s MAG3110 is a small, low-power, digital 3-axis magnetometer. The device can be used in conjunction with a 3-axis accelerometer to produce orientation independent accurate compass heading information. It features a standard I2C serial interface output and smart embedded functions. It’s also a tiny QFN package which isn’t very easy to play with so here is our easy to use breakout board. This board breaks out all of the pins for the MAG3110FCR1 to a standard 0.1" header and also supplies the necessary filtering capacitors so that you can easily use it in your next navigation project.
Features:
1.95V to 3.6V Supply Voltage
7-bit I2C address = 0x0E
Full Scale Range ±1000 μT
Sensitivity of 0.10 μT
Dimensions: 13.3 x 14.5 mm
Documents:
Schematic
Eagle Files
Datasheet (MAG3110FCR1)
Example Code
