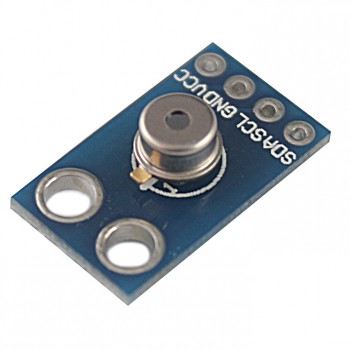

ماژول دماسنج مادون قرمز - ترمومتر غیرتماسی MLX90615
The MLX90615 is an Infra Red thermometer for non contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning chip are integrated in the same TO-46 can package. Thanks to its low noise amplifier, 16-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved. The thermometer comes factory calibrated with the digital SMBus compatible interface enabled. Readout resolution is 0.02°C.
ماژول دماسنج مادون قرمز - ترمومتر غیرتماسی MLX90615
The MLX90615 is an Infra Red thermometer for non contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning chip are integrated in the same TO-46 can package. Thanks to its low noise amplifier, 16-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved. The thermometer comes factory calibrated with the digital SMBus compatible interface enabled. Readout resolution is 0.02°C.
Features:
Small size, low cost
Easy to integrate
Factory calibrated in wide temperature range:
-40…85°C for sensor temperature and
-40…115°C for object temperature.
High accuracy of 0.5°C over wide temperature range (0...+50°C for both TA and TO )
High (medical) accuracy calibration
Measurement resolution of 0.02°C
SMBus compatible digital interface
Power saving mode
ustomizable PWM output for continuous reading
Embedded emissivity compensation
3V supply voltage
Applications:
High precision non-contact temperature measurements;
Hand-held thermometers
Ear thermometers
Home appliances with temperature control;
Healthcare;
Livestock monitoring;
Multiple zone temperature control – up to 100 sensors can be read via common 2 wires
