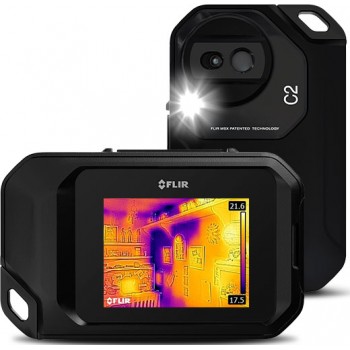

دوربین و نمایشگر حرارتی - FLIR C2 Thermal Camera با رابط USB
Features:
Light, slim profile fits comfortably in any work and street-wear pocket
Brilliant 3” intuitive touch screen with auto orientation for easy viewing
MSX® FLIR’s proprietary multi-spectral-imaging feature gives you stunning image clarity
Built-in LED spotlight you can use as a flashlight and for photo illumination
دوربین و نمایشگر حرارتی - FLIR C2 Thermal Camera با رابط USB
Features:
Light, slim profile fits comfortably in any work and street-wear pocket
Brilliant 3” intuitive touch screen with auto orientation for easy viewing
MSX® FLIR’s proprietary multi-spectral-imaging feature gives you stunning image clarity
Built-in LED spotlight you can use as a flashlight and for photo illumination
Wide angle lens is optimized for building applications
Fully radiometric images lets you measure any point on the image in post analysis on scenes between -10°C to 150°
Streaming video via FLIR Tools, a feature not usually available on low-cost systems
Includes FLIR Tools professional reporting software for Mac or PC
FLIR’s unique 2-10 warranty, covering parts and labor for two years and the detector for ten
Specification:
Imaging and Optical Data
IR Sensor:80 × 60 (4,800 measurement pixels)
Thermal Sensitivity:‹ 0.10°C
Field of View:41° x 31°
Minimum Focus Distance Thermal: 0.15 m (0.49 ft.)MSX®: 1.0 m (3.3 ft.)
Image Frequency:9 Hz
Spectral Range:7.5 - 14 µm
3" Display (Color):320 x 240 pixels
Auto Orientation:Yes
Touch Screen:Yes
Image Presentation Modes
Thermal Image:Yes
Visual Image:Yes
MSX®:Yes
Gallery:Yes
Measurement
Object temperature range:-10°C to +150°C (14 to 302°F)
Accuracy:±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal
Measurement Analysis
Spotmeter:On/Off
Emissivity Correction:Yes; matte/semi/glossy + user set
Measurments Correction:Reflected apparent temperature Emissivity
Set-Up
Color Palettes:Iron, Rainbow, Rainbow HC, Gray
Storage Media:Internal memory stores at least 500 sets of images
Image file format:Standard JPEG, 14-bit measurement data included
Video Streaming
Non-Radiometric IR-Video Streaming:Yes
Visual Video Streaming:Yes
Digital Camera
Digital Camera:640 x 480 pixels
Digital Camera, Focus:Fixed Focus
Additional Information
USB, Connector Type:USB Micro-B: Data transfer to and from PC, iOS and Android
Battery:3.7 V Rechargeable Li-ion polymer battery
Battery Operating Time:2 hours
Charging System:Charged inside the camera
Charging Time:1.5 hours
External Power Operation:AC adapter, 90-260 VAC input 5 V output to camera
Power Managemen:Automatic shut-down
Operating Temperature Range:-10°C to +50°C (14 to 122°F)
Storage Temperature Range:-40°C to +70°C (-40 to 158°F)
Weight:0.13 kg (0.29 lb.)
Size (L x W x H):125 x 80 x 24 mm (4.9 x 3.1 x 0.94 in.)
