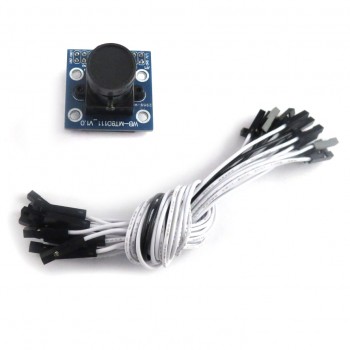

ماژول دوربین 2 مگا پیکسل MT9D111 JPEG
Features
Ultra-low power consumption, progressive scan
200 million pixels resolution (1600 H x 1200 V)
1/3.2 inch optical format
frame rate up to 15 fps under full resolution
Real-time JPEG encoding
Integrated with processor, with much flexibility
ماژول دوربین 2 مگا پیکسل MT9D111 JPEG
Features
Ultra-low power consumption, progressive scan
200 million pixels resolution (1600 H x 1200 V)
1/3.2 inch optical format
frame rate up to 15 fps under full resolution
Real-time JPEG encoding
Integrated with processor, with much flexibility
Many automatic functions including correcting or enhancing images, and fast exposure adjustment
Integrated 10-bit ADC chip
Support ITU_R BT.656 (YCbCr), 565RGB, 555RGB, 444RGB and original output data format
Support JPEG 4:2:2 and 4:2:0 output
Support AVR,STM32 MCU,JPEG output
Parameter
Response rate: 1.0 V / lux-sec (550nm)
Master Clock: 6 MHz-80 MHz (integrated PLL)
Signal to noise ratio: > 41dB (max)
Power supply voltage: 2.5v-3.1V
Power consumption: < 150mW (@ 30 fps
