ماژول سنسور جریان نوری PX4FLOW ویژه PIXHAWK
Description:

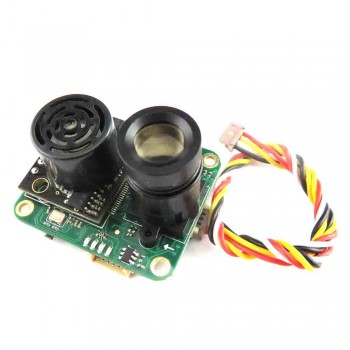

CUAV PX4FLOW 2.1 Optical Flow Sensor Smart Camera for PX4 PIXHAWK Flight Control
ماژول سنسور جریان نوری PX4FLOW ویژه PIXHAWK
Description:
CUAV PX4FLOW 2.1 Optical Flow Sensor Smart Camera for PX4 PIXHAWK Flight Control
Features:
MT9V034 machine vision CMOS sensor with global shutter
Optical flow processing at 4×4 binned image at 400 Hz
Superior light sensitivity with 24×24 μm super-pixels
Onboard 16bit gyroscope up to 2000°/s and 780 Hz update rate, default high precision-mode at 500°/s
Onboard sonar input and mount for Maxbotix sonar sensors. (HRLV-EZ4 )
USB bootloader
USB serial up to 921600 baud (including live camera view with QGroundControl)
USB power option
Does fit the MatrixVision Bluefox MV mounting holes (camera center off-centered)
Specifications:
168 MHz Cortex M4F CPU (128 + 64 KB RAM)
752×480 MT9V034 image sensor, L3GD20 3D Gyro
16 mm M12 lens (IR block filter)
Size 32.5*38mm
Power consumption 115mA / 5V
