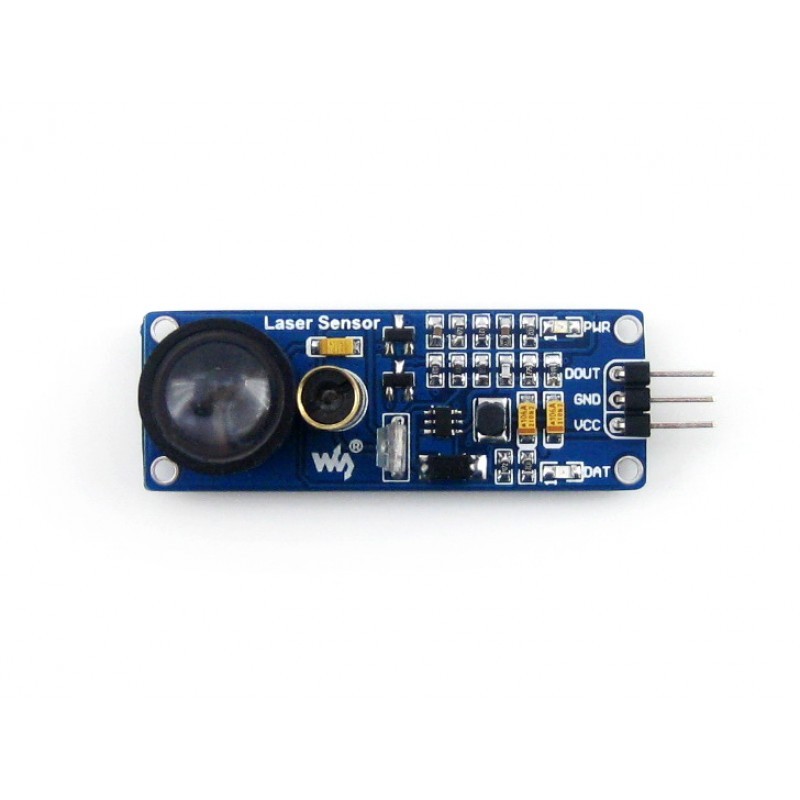

Obstacle Detection Laser Sensor

Obstacle Detection Laser Sensor

Description

• Features boost circuit
• Signal output indicator

What's Included

• Laser Sensor × 1
• 3-pin custom connector jumper wire × 1

Specifications

• Effective distance: 0.8m(typ), 1.5m(max)
• Power: 2.5V ~ 5.0V
• Dimension: 47.7mm * 17.9mm
• Mounting holes size: 2.0mm

Applications

• Obstacle detection
• Pipeline counter
• Smart robot
• Obstacle-avoiding car

How to Use

In the case of working with a MCU:

• VCC ↔ 2.5V ~ 5.0V
• GND ↔ power supply ground
• DOUT ↔ MCU.IO (digital output)

Useful Links

ZIP File

• Documentation

Dimensions

• Weight: 0.01 kg
