Loke 0.2 to 30m Industrial Laser Distance Meter (10Hz)

Loke 0.2 to 30m Industrial Laser Distance Meter (10Hz)

Description

• RS232/422 interface
• Opto-electronic distance measuring module for industrial applications
• Millimeter accuracy measurement on any surface
• Easy installation and commissioning
• Meets IP 65 protection class for industrial use

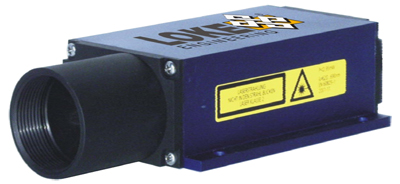

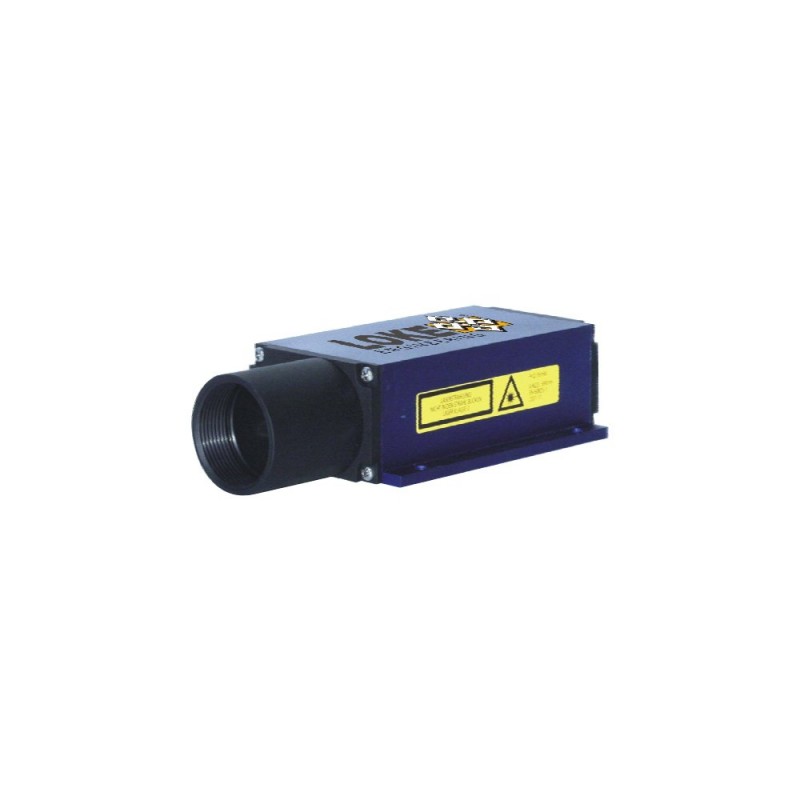

The Loke 0.2 to 30m Industrial Laser Distance Meter (10Hz) is an opto-electronic distance measuring module for industrial applications. The module operates on basis of non-contact comparative phase measurement with amplitude modulation. The Laser diode (cw operation) has a divergence of 0.6 mrad for measurement with pinpoint accuracy. The measured result is available on different interfaces. A digital switching output, an analog 4.20mA output is also available. The sensor alignment can be easily achieved with the help of the red pilot laser. The measuring range is on any natural surface between 0.2 to 30m, for 30 to 100m, it depends on the surface reflectivity coefficient (f.e. concrete 30%, white paper 90%) and for distances of more than 100m special plastic reflectors with a very high reflectivity coefficient of 2000% can be delivered.

Features:
• Laser class 2 for eye safe operation
• Non-reflector measurement
• Millimeter accuracy measurement on any surface
• Easy installation and commissioning
• Allows field bus integration (Profibus)
• Meets IP 65 protection class for industrial use
• Precisely defines positions
• Detects movements

Applications:
• Control and Positioning of Transport and Crane Systems
• Distance Measurement
• Position Detection
• Level Measurement
• Security Applications
• Position Controls of moving Objects
• Control and Measuring of Lifting Devices
• Lift Positioning
• Parts detection

Specifications

• Measuring range: 0.2 to 30 m on any natural surface, up to 150m (depending on target reflectivity, stray light influences and atmospheric conditions).
• Measuring accuracy: ± 2 mm under defined measuring conditions, ± 3 mm (+15°C to +35°C), ± 5 mm (-10°C to +50°C) (statistical spread 95%)
• Measuring resolution: depending on scaling factor (SF1 = 1.0 mm; SF10 = 0.1 mm)
• Repeatability: = ± 0,5 mm
• Measuring rate: 10Hz on white surfaces, Typically 5 Hz (up to 10 Hz) on all surfaces
• Laser divergence:0.6 mrad
• Laser classification: 1 mW under IEC 825-1, laser class 2 (red light)
• Operating temperature: -10 °C to +60 °C
• Supply voltage: 10 V to 30 V,  <1,5 W (without IAlarm)
• Phys. dimensions: 212 x 96 x 50 mm (L x W x H)
• Weight: About 500 g
• Protection class: IP 65

Useful Links

PDF File
• Datasheet DMJ00401E

Dimensions

Dimensions: 212mm x 96mm x 50 mm
