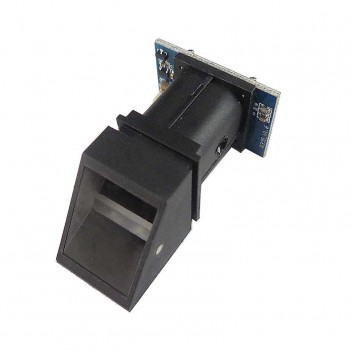

R305 fingerprint module by the optical fingerprint sensor, high-speed DSP processors, high performance fingerprint matching algorithm, large capacity FLASH chip and other hardware and software configuration, stable performance, simple structure, with a fingerprint input, image processing, fingerprint matching, search and template storage other functions

Product Features:
Functional: independently fingerprint, fingerprint registration, fingerprint matching (1: 1) and fingerprint search (1: N) function.
Compact: product is compact, there is no external algorithm DSP chip circuit board has been integrated one, easy to install, less failure.
Low power consumption: product overall power consumption is very low, for low-power requirements of the occasion.
antistatic ability: antistatic ability has a strong, anti-static indicators have reached more than 15KV.
simple application development: Developers can control instructions provided in accordance with their own fingerprint application development products, without possess professional knowledge of fingerprint identification.
security level adjustable: suitable for different applications, the security level set by the user to adjust.

A brief description of R305 fingerprint module:
1. Fingerprint Capacity:
R305 fingerprint module storage capacity is 980 .
2. Interface description:
The R305 fingerprint module is also available in RS232 and USB1.1 , dual interface to communicate with the outside world ; USB1.1 interface can be connected to the computer; RS232 interface is a TTL level, the default baud rate of 57600 , can be changed, refer to the communication protocol ; can with the microcontroller, such as ARM, DSP and other devices with a serial port connection, 3.3V 5V microcontroller can be connected directly. Connected to the computer needs to be level conversion, please note the level conversion , cases such as the MAX232 circuit.
3. Detection on module:
Fingerprint module after power-up, the fingerprint capture window will flash, indicating that the self-test is normal, if not flash, please check the power is reversed, then the wrong and so on. Normal working hours are some hot chips ,, this is a normal phenomenon, it has been rigorously tested , you can be assured use .

Technical Parameters:
Supply voltage: DC 4.2 ~ 6.0V
Working Current: 110mA (typ)
Peak Current: 140mA
Fingerprint image input time: <0.3 seconds
Window Size: 15 ╳ 19 mm
Match mode: Than on the way (1: 1) ; Search mode (1: N)
Signature File: 256 bytes
Template files: 512 bytes
Storage capacity: 980 pieces
Security level: five (from low to high: 1,2,3,4,5)
False Accept Rate (FAR): <0.001%
False rejection rate (FRR): <1.0%
Search time: <1.0 seconds (1: 1000, average)
PC Interface: UART \ USB1.1
Baud rate (UART): (9600 ╳ N) bps where N = 1 ~ 12 (default value N = 6, that is 57600bps)
working environment: Temperature: -20 c- + 40c ; Relative Humidity: 40% RH-85% RH (non-condensing)
