ماژول GPS UBLOX MAX-7Q همراه با آنتن - موقعیت یاب ماهواره ای
The MAX-7Q Evaluation board makes evaluating the high performance of the u-blox 7 GPS/GNSS positioning engine simple.
ماژول GPS UBLOX MAX-7Q همراه با آنتن - موقعیت یاب ماهواره ای

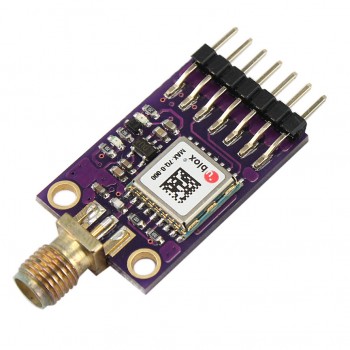

The MAX-7Q Evaluation board makes evaluating the high performance of the u-blox 7 GPS/GNSS positioning engine simple. The MAX-7Q Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the MAX-7Q breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the u-Blox MAX-7Q with UF.L antenna connectors.
MAX-7Q board features:
u-blox 7 Multi-GNSS engine for GPS/QZSS L1 C/A, GLONASS L1 FDMA, SBAS: WAAS, EGNOS, MSAS
SuperSense Indoor GPS, -162dBm
On-board Ultra low noise 3.3V voltage regulator
I2C (SDA,SCL) and Uart (Tx,Rx)
UF.L antenna connectors
u-center GPS Evaluation Software
Extensive visualization and evaluation features
Supports AssistNow Online and AssistNow Offline A-GPS services
1 TTL UART port, 1 I2C port, One JST 1mm SH connectors 6pin for I2C, UART)
Time pulse LED
I2C eeprom memory on board for settings save inside in the module (can save setings without battery)
Battery for HOT module start
Build-in on board filters, which reduce noise from motor and other high current electronics
Dimensions: 27x16 mm
Weight 2.3 gram
Fully assembled and ready to use
MAX-7Q features:
56-channel u-blox 7 engine
GPS L1 C/A, GLONASS L1 FDMA ,
QZSS L1 C/A,
Galileo E1B/C, Compass ready
SBAS: WAAS, EGNOS, MSAS
Navigation update rate up to 10 Hz
Sensitivity
1.Tracking: –161 dBm –158 dBm
2.Cold starts: –148 dBm –140 dBm
3.Warm starts: –148 dBm –145 dBm
Oscillator TCXO
Built-In RTC crystal
Anti jamming Active CW detection and removal
ROM Memory
Active and passive antenna support
