ماژول آمپلی فایر HXJ8002

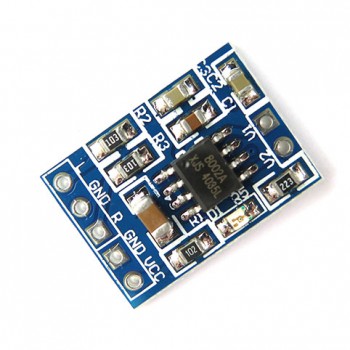

This miniature audio amplifier module is ideal for adding audio output capabilities to your new project. It is based on the HXJ8002 single channel 3 W BTL power audio amplifier chip, which features a low harmonic distortion of the audio signal.

Specifications
On-board HXJ8002 chip
Number of channels: single
Output power: 3 W (for a 3 Ω load), 2.5 W (4 Ω load), 1.5 W (8 Ω load)
Working Voltage Range: 2 V to 5.5 V
Standby Current: 0.6 µA (typical value)
Board Size: 19.8 x 14.2 mm
