ماژول آمپلی فایر استریو TDA7266 همراه با ولوم متغیر

ماژول آمپلی فایر استریو TDA7266 همراه با ولوم متغیر

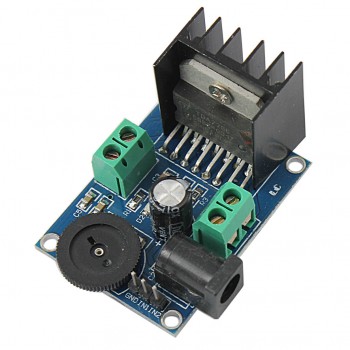

TDA7266 power amplifier module audio amplifier module
Onboard TDA7266 audio power amplifier chip, double channel 7W+7W, speaker for European 4-8 5-15W use
main pin has led chips, convenient external device control, onboard 2 road, 5.08 (mm) distance between 2 p
terminal, around a track connection output respectively
onboard dial potentiometer, can adjust the volume of output size
support for DC, terminals, pin 3 power supply input mode, the default for the DC, working voltage: 3 to 18 v
the board size: 45 (mm) x33 (mm)
