9 DoF IMU - Gyro- Accelerometer - Magnometer
Description
• Very small sensor board with 9 degrees of freedom
• Includes the ADXL345 accelerometer, the HMC5883L magnetometer, and the ITG-3200 gyro
• Simple I2C interface with mounting hole to attach
• Operating voltage: 3.3 volts
• RoHS Compliant
9 DoF IMU - Gyro- Accelerometer - Magnometer
Description
• Very small sensor board with 9 degrees of freedom
• Includes the ADXL345 accelerometer, the HMC5883L magnetometer, and the ITG-3200 gyro
• Simple I2C interface with mounting hole to attach
• Operating voltage: 3.3 volts
• RoHS Compliant

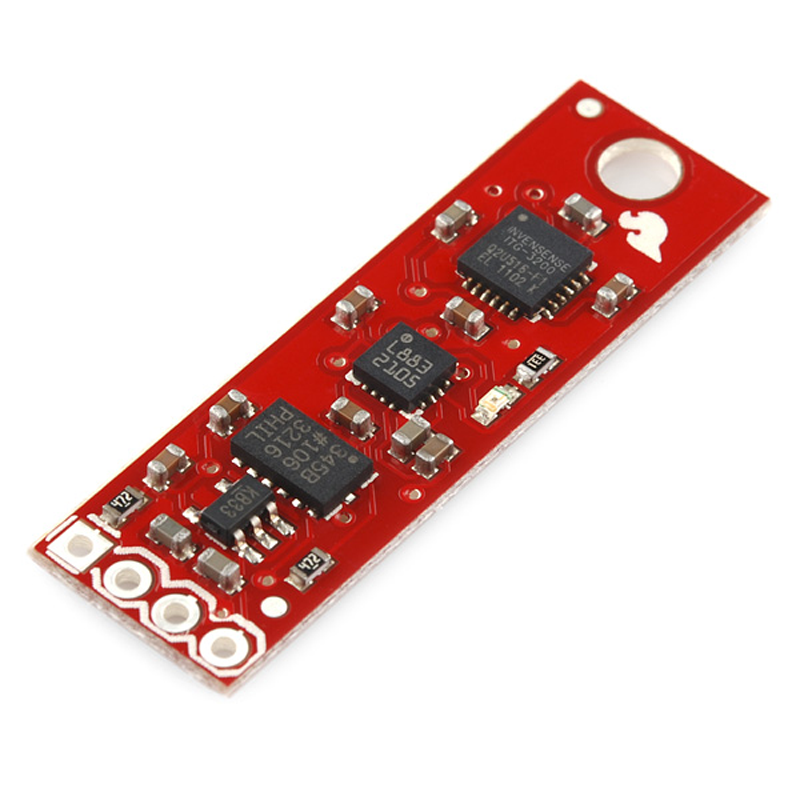

The 9 DoF IMU - Gyro- Accelerometer - Magnometer is a very small sensor board with 9 degrees of freedom. It includes the ADXL345 accelerometer ( A small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g ), the HMC5883L magnetometer (A surface-mount, multi-chip module designed for low-field magnetic sensing with a digital interface for low-cost compassing and magnetometer applications), and the ITG-3200 gyro ( The world's first single-chip, 3-axis MEMS gyro IC optimized for gaming, 3D mice, and 3D remote control applications ).
Also, the board is a mere 0.036'' thick (0.093''overall), allowing it to be easily mounted in any application.
Useful Links
ZIP File:
• Documentation

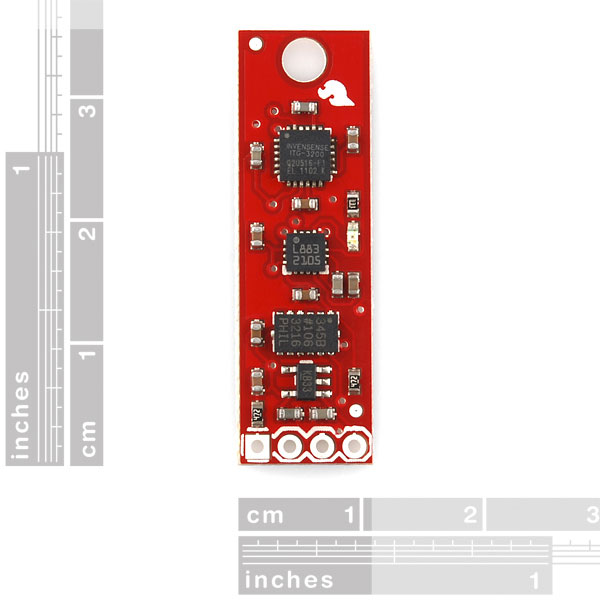

Dimensions
• 1.37x0.42''
