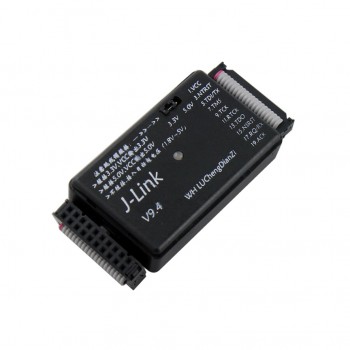

پروگرامر و شبیه ساز JLINK V9.4 - امولاتور میکروکنترلر های آرم
Features:
1. The whole network's first hardware version V9.3, firmware version V9.4 ;
2. The main chip STM32F205RCT6 (only this IC should be more than 20), can not afford to firmware ;
3. original firmware, supports automatic upgrade, downgrade manual ;
4. Immersion Gold process ;
5. Exclusive use of blue plastic USB holder and blue gum JTAG interface ;
6. The exclusive use of SMD LED + light pipe design;
7. The original circuit, non-castrated version, voltage support unlimited ;
8. Each host has a unique SN ; support one computer simultaneously access multiple hosts
V9.4 emulator:
JTAG / SWD emulator with USB interface
V9.4 is a USB-powered JTAG emulator supports a large number of CPU cores.
Based on 32-bit RISC CPU, it can communicate at high speed with the support of the target processor. V9.4 for the purpose of tens of thousands of places around the world to develop and produce (flash programming) in.
The V9.4 is composed of all major IDE, such as IAR EWARM, Keil company MDK, CrossWorks of Raleigh, Atollic TrueSTUDIO, IAR EWRX, Renesas HEW, Renesas e2studio, and many others for their support.
Including all models, more than 100,000 have been sold so far in the J- link so that may be the most popular J-Link emulator ARM core and de facto standards.
Specifications:
Supports direct download to the flash memory of most popular microcontrollers memoryof
Supported CPU: Cortex-M0 any ARM7 / 9/11 of the Cortex-A5 / A8 / A9 motorway / M1 / M3 / M4, the Cortex-R4, RX100 / RX200 / RX610 / RX621 / RX62N / RX62T / RX630 / RX631 / RX63N
Download speeds of up to 1 megabyte / sec
Supports unlimited breakpoints in RAM! 1MORE information ...
Set breakpoints Cortex-M system inexternalflash memory is possible
V9.4 's Unlimited Flash Breakpoints technology!
Support for all major IDEsMore ...
Free software updates2,1
It supports concurrent access by multiple application CPU 3
Cross-platform support (running on Windows, Linux, Mac OS X in) 4
Intelligence simulator firmwareMore information ...
The remote server is included. Via TCP / IPMore information allowed J- connect to a remote ...
GDBSERVER includedMore information ...
Production Flash Programming software (J- flash) availableMore information ...
Software Development Kit (SDK) availableMore information ...
Support for multiple target interface: JTAG, SWD
Support SWV / SWO (Serial Wire Viewer / Serial Wire Output)
Target voltage range: 1.2V - 3.3V, 5V tolerant
Connect multiple devices support JTAG chain
Support Buffer (ETB) embedded tracking
Available various target adapters, including optical isolation adapter.More information ...
RDI Interface DLL available.More information ...
Fully Plug and Play compatible
No power, power supply via USB
Support adaptive clock
All JTAG signals can be monitored, target voltage can be measured
Target Power: V9.4 provides up to 300 mA of target with overload protection
