پروگرامر و USB دیباگر (JTAG/C2)
Description:

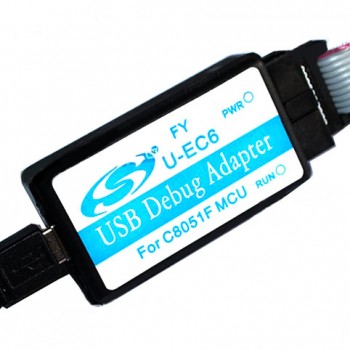

Our emulator for U EC6 , USB Debug Adaptor emulator design and production
Support for the program download and online simulation.
Programmers have full USB2.0 interface, free installation drivers, hardware enhanced protection (reduction of the rate of hardware damage caused by improper use).
Product dimensions are about 49 * 27 * 14mm, PVC waterproof paste, the appearance of fine
Support WIN XP, WIN7.
Supported Software:
With Keil, silabs official launch of a variety of software, such as the Silicon Laboratories IDE, FLASH Utility Programmer, Product Programmer, new U-EC5 Chinese Hualong download software and IAR Embedded Workbench for MCS-51 and other software seamlessly debug.
Supported Devices:
Support for the full range of C8051F MCU.
TAG interface: C8051F00x C8051F01x C8051F02x C8051F04x C8051F06x C8051F12x C8051F2xx
C2 Interface: C8051F3xx C8051F41x C8051F5xx C8051F7xx C8051F8xx C8051F9xx
the product has automatic firmware upgrade function, so that the emulator can realize the full range of C8051F chip simulation and subsequent production of C8051F MCU series.
Functionality:
Multi-circuit protection. The emulator has ESD protection circuit, with 500mA resettable fuse, which can effectively protect your computer USB power supply module to prevent computer motherboard chip burned. Most brand-name market simulator in order to save costs, have no protection, the use of extremely unsafe;
Double buffering chips. The emulator has a double-buffered chip , can prevent direct damage to the main chip. Most brand-name market simulator in order to save costs, are not a feature, or buy poor homemade chips, or refurbished goods, unstable quality. Our new import original chip NXP chip, quality assurance;
Strong dual power output. The emulator supports dual power output, output 5V / 500mA and 3.3V / 500mA , can power the target for the development of a direct offer great convenience.
Configure a quality USB cable. A port forwarding configured OUR side port USB cable with magnetic (black), about 1.5 m, diameter up to 5 mm coarse.
Emulator Interface Definition:
Using C8051F dedicated JTAG / C2 interface.
Support JTAG and C2 mode debugging, support up to four breakpoints .
When using the C2 interface, you can only use two lines (C2CK, C2D).
