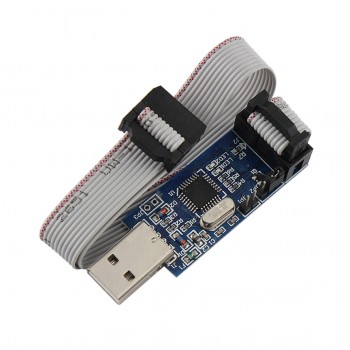

پروگرامر USBasp میکروکنترلر - ATMEL اتمل AVR - آپلودر Boot Loader آردوینو

پروگرامر USBasp میکروکنترلر - ATMEL اتمل AVR - آپلودر Boot Loader آردوینو

Module description:
1 , on-board new imported ATMega8A-AU chip
2 , with power and burning two indicators
3 , onboard 500mA overcurrent protection resettable fuse
4 , the target board supports 5V and 3.3V power supply

No need to install drivers
The latest novel from suitable automatic speed control.
Suitable for WIN8.1 / 8/7 / XP 32 Bit / 64, a computer system.
The product can be connected directly to the computer USB port, USB downloader real products that connect the target board through it, can be downloaded to the microcontroller programming operation easy to use, especially for notebook computers, desktop computers, via USB port programming download debugging.

Download features:
1. Support AT89S51 / 52 microcontroller AVR
2. Support all ASP chips.
3. Output port ATMEL standard port.
4. USB to take power and target support target voltage 5V, can connect via jumper select.
5. AUTOSPEED automatic speed control firmware downloader will automatically track the frequency of the chip to be programmed to automatically change the speed, reach the automatic speed control.
6. Reserved MOSI, MISO, RET, SCK, VCC, GND. 6PIN interface, easy user connections based on needs of the target board.
7. Reserved PROGRAMMING programming interface, users can download the firmware upgrade themselves.

Programming software :
AVR_fighter, PROGISP1.66, PROGISP1.67, PROGISP1.68 compile a lower or higher software line, burning pieces at one go, very convenient .

​

AT89S51 and S52 series pin connection line corresponds to the definition of downloads:
MOSI -> P1.5
MISO -> P1.6
SCK -> P1.7
RES -> RST
GND -> GND
5V -> VCC

Supports the programming of the chip:
51 Series
AT89S51AT89S52AT89S53 AT89S8253 AT89S2051 AT89S8252 AT89S4051
AVR Series
AT90can128 AT90can32 AT90can64, AT90pwm2, AT90pwm3, AT90s1200, AT90s2313, AT90s2323, AT90s2343, AT90s4414, AT90S8515, AT90S8535 AT90usb1286, AT90usb1287
ATmega103, Atmega128, Atmega1280, ATmega1281, Atmega16, ATmega161, ATMEGA162, ATmega163, ATmega164, ATmega165, Atmega168, ATmega169, ATmega2560, ATmega2561, Atmega32, ATmega323, Atmega324, ATmega325, Atmega3250, Atmega3259, ATmega328, ATmega329, ATmega3290, ATmega406, Atmega48, ATMEGA64, ATmega640, ATmega644, ATmega645, Atmega6450, Atmega649, Atmega6490, Atmega8, ATMEGA8515, ATmega8535, Atmega88,
ATtiny11, ATtiny12, ATTINY13, ATtiny15, Attiny22, ATtiny2313, ATtiny24,
Attiny25, Attiny26, Attiny261, Attiny28, Attiny44, Attiny45, Attiny46,
Attiny46,1Attiny84, Attiny85, Attiny861
