پروگرامر ST-Link V2/ JTAG ویژه بردهای STM8 و STM32

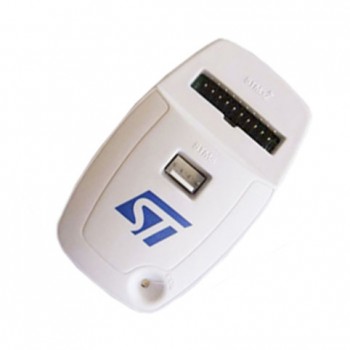

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module and JTAG/serial wire debugging interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
پروگرامر ST-Link V2/ JTAG ویژه بردهای STM8 و STM32
The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module and JTAG/serial wire debugging interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
STM8 applications use the USB full speed interface to communicate with STMicroelectronics' ST Visual Develop or ST Visual Program software.
STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Features:
5 V power supplied by a USB connector
USB 2.0 full speed compatible interface
USB standard A to mini B cable
Programming:Programs FLASH ROM, EEPROM, AFR, Security-bits, etc.
Operating temperature 0 to 50°C
SWIM specific features:
1.65 V to 5.5 V application voltage supported on SWIM interface
SWIM low-speed and high-speed modes supported
SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
SWIM cable for connection to the application via an ERNI standard vertical or horizontal connector
SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
JTAG specific features:
1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
Direct firmware update feature supported
Status LED which blinks during communication with the PC
Supported Devices:
Supports all STM8 MCU interfaces with SWIM
Supports all STM32 family of microcontrollers with JTAG / SWD interface
Supported Software:
ST official direct support IDE (Integrated Development Environment software) ST Visual Develop (STVD) and burning software ST Visual Program (STVP).
Support ATOLLIC, IAR and Keil, TASKING integrated development environment, such as the STM32.
ST-LINK/V2 Status:
The LED labeled 'COM' on top of the ST-LINK/V2 shows the ST-LINK/V2 status (whatever the connection type). When the:
LED is blinking RED: the first USB enumeration with the PC is taking place. If it keeps blinking RED, maybe the USB driver is NOT found.
LED is RED: communication between ST-LINK/V2 and the PC is established (end of enumeration).
LED is blinking GREEN/RED: data are being exchanged between the target and the PC.
LED is GREEN: the last communication has been successful.
LED is ORANGE: ST-LINK/V2 communication with the target has failed.
