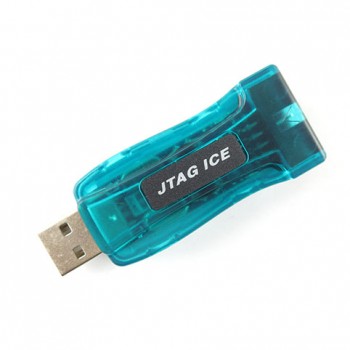

پروگرامر JTAG ICE
Description:
Atmel AVR JTAG is the company's AVR Studio's on-chip debugging tools, it has JTAG interface and supports all AVR 8-bit RISC instruction which has a standard JTAG interface. 4-wire JTAG interface is a standards-compliant IEEE 1149.1 test access port (TAP) controller. IEEE standards board to provide an effective test of the standard method of connectivity (Boundary Scan). Atmel's AVR devices has been extended to support full programming and on-chip debugging functions.
پروگرامر JTAG ICE
Description:
Atmel AVR JTAG is the company's AVR Studio's on-chip debugging tools, it has JTAG interface and supports all AVR 8-bit RISC instruction which has a standard JTAG interface. 4-wire JTAG interface is a standards-compliant IEEE 1149.1 test access port (TAP) controller. IEEE standards board to provide an effective test of the standard method of connectivity (Boundary Scan). Atmel's AVR devices has been extended to support full programming and on-chip debugging functions.
AVR JTAG emulator chip used for hardware emulation, such as single-step program execution, set breakpoints, etc.through hardware simulation program which can understand the details of the chip operation. AVR JTAG Emulator is mainly used to simulate the operation of the chip.
JTAG ICE supported devices:
ATMega16, ATmega16L, ATMega162, ATmega162V, ATmega165, ATmega165V, ATMega169, ATmega169V, ATMega32, ATMega323, ATmega323L, ATmega32L, ATMega64, ATmega64L, ATMega128, ATmega128L
Package including:
AVR USB JTAG ICE X 1
10-Pin cable X 1
Supported Software:
Direct support AVRStudio, WINAVR (GCC)
Support ICCAVR, CVAVR, IAR and other programming to generate debug files and documents
Simulation :
Simulation capabilities: support full speed, single-step debugging, breakpoints, and other debugging method, you can view IO status, variable data, and so on.
Simulation performance: USB interface simulation debugging, single stepping, breakpoints, the reaction speed is quite fast, speed simulation!
Programming features: Fuse programming, encryption bit, EEPROM, and other functions, and so on.
For JTAG download speed programming.
USB port with USB2.0, high-speed USB communication.
Driver:
PL-2303 XP dirver
PL-2303 Win7 dirver
