پروگرامر CC دیباگر - CC Debugger
Description
The CC Debugger is a small programmer and debugger for the TI Low Power RF System-on-Chips. It can be used together with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging and SmartRF Flash Programmer for flash programming. The CC Debugger can also be used for controlling selected devices from SmartRF Studio.
پروگرامر CC دیباگر - CC Debugger
Description
The CC Debugger is a small programmer and debugger for the TI Low Power RF System-on-Chips. It can be used together with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging and SmartRF Flash Programmer for flash programming. The CC Debugger can also be used for controlling selected devices from SmartRF Studio.

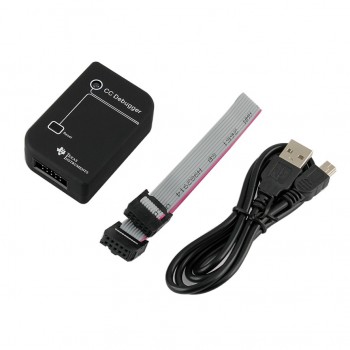

Contents in the box:
CC Debugger
Mini USB cable
10-pin flat cable
Documentation
CC-Debugger can be used to program and debug the following 8051-based system-on-chips from Texas Instruments:
CC1110, CC1111
CC2430, CC2431
CC2510, CC2511
CC2530, CC2531, CC2533
CC2540, CC2541
CC2543, CC2544, CC2545
It is possible to control the same devices from SmartRF Studio. In addition, CC-Debugger can control the following transceivers from SmartRF Studio:
CC1120, CC1121, CC1125, CC1175
CC1100, CC1101, CC110L, CC113L, CC115L
CC2500, CC2520
It can also be used to program the PurePath Wireless devices:
CC8520, CC8521
CC8530, CC8531
