ماژول نمایشگر 7 اینچ HDMI + AV تاچ اسکرین مقاومتی ( لمسی ) مناسب برای برد رسپبری پای
Operating voltage: 12V 1A power supply current requirements less than 2A, as with the best car power plus a regulator to prevent interference
Rated power :6-7W
Signal Input: AV
System formSt: PAL / NTSC
ماژول نمایشگر 7 اینچ HDMI + AV تاچ اسکرین مقاومتی ( لمسی ) مناسب برای برد رسپبری پای
Operating voltage: 12V 1A power supply current requirements less than 2A, as with the best car power plus a regulator to prevent interference
Rated power :6-7W
Signal Input: AV
System formSt: PAL / NTSC
HDMI Input: HDMI 1.1 version
VGA input: 800 * 480 physical resolution, support for resolutions range 640 × 480 --- 1600 × 1200 adjusted between!
AV1 video input (DVD devices can be linked or front camera)
AV2 video input (to the car automatically switches to the camera screen)
Plug and Play: Support
OSD Language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multi OSD operation or potentiometer to adjust the brightness and color
Features: The mature programs, clear display
Reversing the priority feature set:
A, the default boot last saved channels.
B, boot, reversing signal, switch to AV2, reversing the signal disappears, back to the original channel.
C, standby, reversing signal, switch to AV2, reversing the signal disappears, return to standby
Support image flip up and down, the image 4:3 / 16:9 display format conversion
Scope: used video intercom, onboard computer, instrumentation, industrial control, medical equipment, military equipment, portable display devices and other electronics.

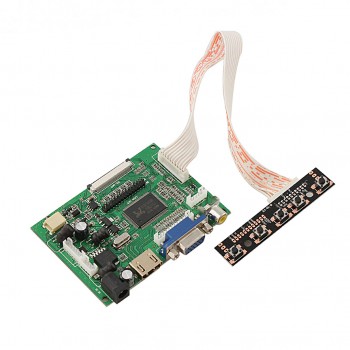

Accessories: LCD + driver board + key board
LCD screen parameters:
Display size 7 inch
Dimensions 165.0 (W) * 100.0 (H) * 5 (D) mm /
Viewing area 154.08 (H) * 85.92 (V)
Resolution 800 * 3 (RGB) *480
Dot pitch 0.05 (W) * 0.15 (H) mm
Viewing Angle L70 ° R70 ° U50 ° D60
Panel Type TFT
Display Color 262K
Contrast Ratio 500:1
Brightness 220cd/m2
Interface Type Digital
Wiring Number 50 PIN Digital (TTL) TCON
LED backlight
20ms response time
Operating temperature -20 c ~ 80 c
Weight TBD
Applications Mobile DVD, digital photo frame, car systems, multimedia applications and other audio-visual systems
