برد درایور LCD چند کاره LA.MV29.P با رابط LVDS

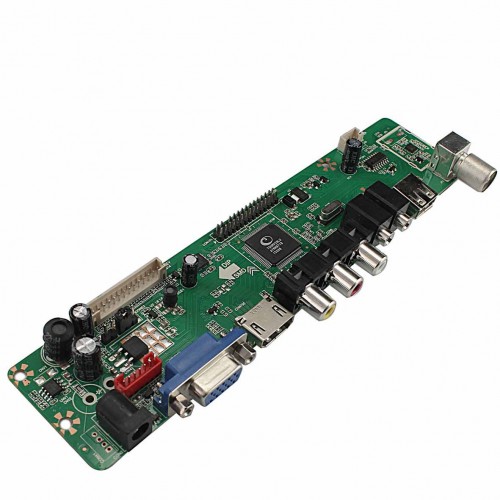

LA.MV29.P* is a flat panel TV control board, which is suitable for Asia-Pacific, South America. It can support
LCD and LED panels from 8.9-inch -42 inch which maximum resolution is up to 1920x1080.
برد درایور LCD چند کاره LA.MV29.P با رابط LVDS
LA.MV29.P* is a flat panel TV control board, which is suitable for Asia-Pacific, South America. It can support
LCD and LED panels from 8.9-inch -42 inch which maximum resolution is up to 1920x1080.
LA.MV29.P*supports HDMI, USB, AV, VGA, ATV. The USB is used for Upgrade only .
LA.MV29.P* can support TSUMV29 :
MV29LU USB Upgrade
MV29LE Teletext, Nicam, USB Upgrade
LCD and LED panels from 8.9-inch -42 inch which maximum resolution is up to 1920x1080.
LA.MV29.P*supports HDMI, USB, AV, VGA, ATV. The USB is used for Upgrade only .
LA.MV29.P* can support TSUMV29 :
MV29LU USB Upgrade
MV29LE Teletext, Nicam, USB Upgrade
Screen Interface: LVDS single 6 single eight pairs 6 pairs of 8
Screen voltage: 3.3V / 5V / 12V
It’s very easy to upgrade firmware by a USB disk for LA.MV29.P*.
Screen voltage: 3.3V / 5V / 12V
It’s very easy to upgrade firmware by a USB disk for LA.MV29.P*.
![](http://shop.aftabrayaneh.com/image/data/product%20extension/LA.MV29.P/LA.MV29.P%20%281%29.png)
![](http://shop.aftabrayaneh.com/image/data/product%20extension/LA.MV29.P/LA.MV29.P%20%282%29.png)
کد محصول
LCD-34
وضعیت موجودی
به زودی
