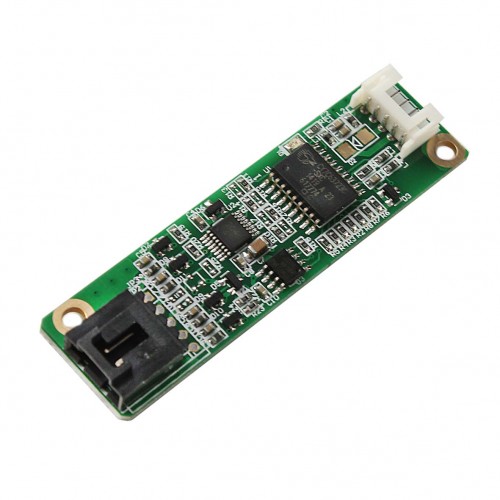

رابط USB صفحات تاچ اسکرین
Hardware
Power Requirements : +5VDC (max. 100mA, typical 70mA, 50mV peak to peak max ripple)
Protocol USB: Max. 160 points/sec
Report Rate USB: Max. 160 points/sec
Response Time Max. 20 ms
Max. resolution : 4096x4096
Regulatory Approvals FCC-B, CE
رابط USB صفحات تاچ اسکرین
Hardware
Power Requirements : +5VDC (max. 100mA, typical 70mA, 50mV peak to peak max ripple)
Protocol USB: Max. 160 points/sec
Report Rate USB: Max. 160 points/sec
Response Time Max. 20 ms
Max. resolution : 4096x4096
Regulatory Approvals FCC-B, CE
Pin Out Definition X, Y, X, Y
Panel Resistance 200 ~ 900 ohm (pin to pin on the same layer)
O/S support Windows, DOS, MAC, QNX, Android, Linux
Software Features
Calibration Fast Full oriental 4 points position
Compensation 1. Accuracy 25 points linearity position, 2. Edge compensation
Draw Test Position and linearity verification
Controller Setting 1. Support multiple controllers, 2. Dynamical add/ remove controllers, 3. Change controller interface without reboot
Languages Support 10 languages for Windows
Mouse Emulator 1. Right/ left button emulation, 2. Click/ drawing mode
Sound Notification 1. No sound,2. Touch down,3. Touch up
Double Click 1. Configurable double click speed, 2. Configurable double click area
COM Port Support 1. Support COM1~COM256 for Windows and Linux, 2. Support COM1~COM8 for DOS
Display Support 1. Support monitor/ display rotation, 2. Support multiple monitors, 3. Support split monitor
