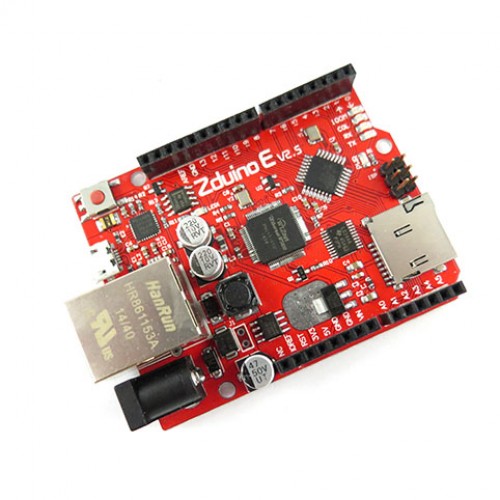

Zduino Ethernet
Description:
Zduino Ethernet, which contains USB download, POE power, TF card slot etc. as well as lead foot position, is a micro controller board based on Arduino Ethernet; With this module, you can connect micro controller to internet and build your network application.
Zduino Ethernet
این محصول مشابه برد Arduino Ethernet می باشد
Description:
Zduino Ethernet, which contains USB download, POE power, TF card slot etc. as well as lead foot position, is a micro controller board based on Arduino Ethernet; With this module, you can connect micro controller to internet and build your network application. The built-in W5100 network module can transform Arduino into a web server; It can use Ethernet library file in IDE to make a simple web server; It also supports Micro SD card reading and writing.
Specification Processor: ATmega328p;
Working voltage: 5V;
Best input voltage: 7~12V (40V max.);
POE input module voltage: 7~30V (48V is needed);
I/O foot: 14; 3, 5, 6, 9, 10, 11 interfaces are for PWM output; 10, 11, 12, 13 interfaces are for SPI communication;interface 4 is for TF card CS;Interface 10 is for W5100 CS; Interface 2 is for disconnecting;
Analogue input pin: 6;
DC output of each I/O: 40mA (The total working current of the processor should not exceed 200mA 3.3V);
DC output: 50mA;
Flash memory: 32KB (0.5KB for bootloader, 2KB for SRAM, 1KB for EEPROM);
Working clock: 16 MHz; TCP/IP Ethernet controller W5100 supports Power Over Ethernet, Micro SD card (TF card);
Micro USB download: Supports Micro SD (8GB max.) reading and writing; Ethernet and Micro SD card use the same SPI slot via time-sharing multiplexing technology interface 4 and 10;
More SPI connection is supported when interface 4 and 10 are prioritized; Compatibility: Arduino Duemilanove (168 or 328), Arduino UNO. (Does not support Arduino Mega 1280 and Arduino Mega 2560)
