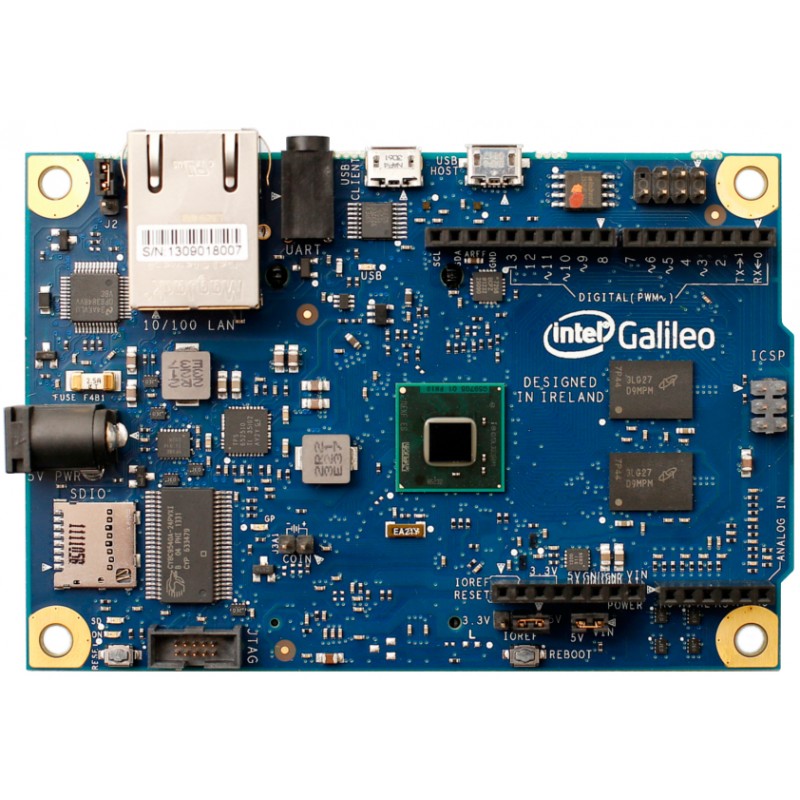

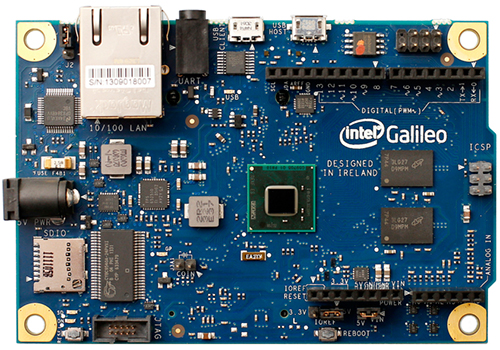

Arduino Intel® Galileo Microcontroller
Microcontroller board based on Intel® Quark SoC X1000 processor
• First board based on Intel® architecture designed with Arduino shields compatibility
• Operating voltage: 3.3V
• Digital I/O pins: 14
Arduino Intel® Galileo Microcontroller
Description
• Microcontroller board based on Intel® Quark SoC X1000 processor
• First board based on Intel® architecture designed with Arduino shields compatibility
• Operating voltage: 3.3V
• Digital I/O pins: 14
The Arduino Intel® Galileo Microcontroller is a microcontroller board based on the Intel® Quark SoC X1000 Application Processor, a 32-bit Intel Pentium-class system on a chip. It’s the first board based on Intel® architecture designed to be hardware and software pin-compatible with Arduino shields designed for the Uno R3. Digital pins 0 to 13 (and the adjacent AREF and GND pins), Analog inputs 0 to 5, the power header, ICSP header, and the UART port pins (0 and 1), are all in the same locations as on the Arduino Uno R3. This is also known as the Arduino 1.0 pinout.
Supplier Product Code
E000037
Dimensions
• Size: 4.2''(L) x 2.8''(W)
Useful Links
ZIP File
• Documentation
Specifications
• Input voltage: 5V
• Digital I/O pins: 14 (of which 6 provide PWM output)
• Analog input pins: 6
• Total DC output current on all I/O lines: 80 mA
• DC current: 800mA(3.3V), 800mA (5V)
