Intel Galileo Gen2

Intel Galileo Gen2

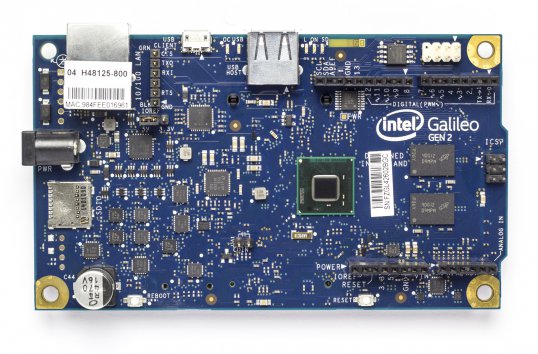

Galileo is a microcontroller board based on the Intel® Quark SoC X1000 Application Processor, a 32-bit Intel Pentium-class system on a chip. This board, based on Intel® architecture, is designed to be hardware and software pin-compatible with Arduino shields designed for the Uno R3. Digital pins 0 to 13 (and the adjacent AREF and GND pins), Analog inputs 0 to 5, the power header, ICSP header, and the UART port pins (0 and 1), are all in the same locations as on the Arduino Uno R3. Programmable through the Arduino integrated development environment (IDE) that is supported on Microsoft Windows, Mac OS, and Linux host operating systems. Support for Yocto 1.4 Poky Linux release.

What's new with the Intel® Galileo Gen2 board?:

• 6-pin 3.3V USB TTL UART header replaces 3.5 mm jack RS-232 console port for Linux debug. New 6-pin connector mates with standard FTDI* USB serial cable (TTL-232R-3V3) and popular USB-to-Serial breakout boards. 12 GPIOs now fully native for greater speed and improved drive strength.
• 12-bit pulse-width modulation (PWM) for more precise control of servos and smoother response.
• Console UART1 can be redirected to Arduino headers in sketches, eliminating the need for soft-serial in many cases.
• 12V power-over-Ethernet (PoE) capable (PoE module installation required).
• Power regulation system changed to accept power supplies from 7V to 15V.
