شیلد وایفای EMW3162 با قابلیت پشتیبانی از برد های آردوینو / NUCLEO

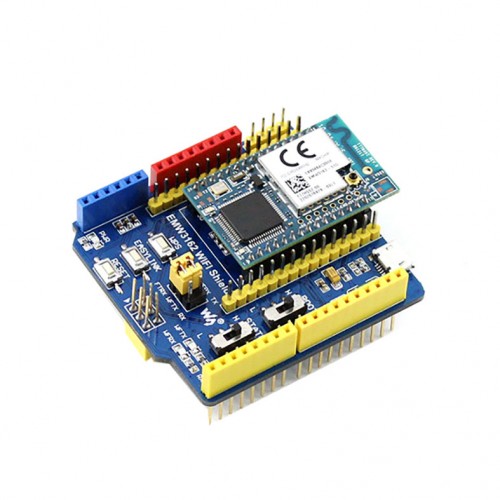

EMW3162 WIFI Shield consists of a base board and a WiFi module EMW3162. It allows you to connect your Arduino/Nucleo board with the Internet. Thanks to the EMW3162 WIFI Shield, WiFi communication will become easy for devices that feature Arduino connectivity.
شیلد وایفای EMW3162 با قابلیت پشتیبانی از برد های آردوینو / NUCLEO
EMW3162 WIFI Shield consists of a base board and a WiFi module EMW3162. It allows you to connect your Arduino/Nucleo board with the Internet. Thanks to the EMW3162 WIFI Shield, WiFi communication will become easy for devices that feature Arduino connectivity.
Features:
The WiFi module EMW3162 :
As easy to use as an serial module with the provided serial transparent transmission firmware
High stability, hardly goes down
Ultra low power consumption, online standby 7mA only
Optional antenna, onboard antenna OR external antenna via IPEX
The base board :
Compatible with Arduino interface, use UART only
Works as an Arduino WiFi Shield, connects to Arduino boards like : UNO, Leonardo, Nucleo, Xnucleo, etc.
Works as an Arduino WiFi board, allows connecting with Arduino shields
Onboard USB to UART converter FT230XS, for UART debugging and/or firmware updating
Onboard WiFi TX/RX LEDs, indicating the WiFi communication status
Supports EasyLink fast matching (instant networking by pushing the SSID and password of the wireless router via smart phone APP)
Supports one-key recovery to factory setting (no need to flash the firmware for configuration errors)
Flexible boot mode configuration
500mA fast self-recovery fuse, stable and safe
