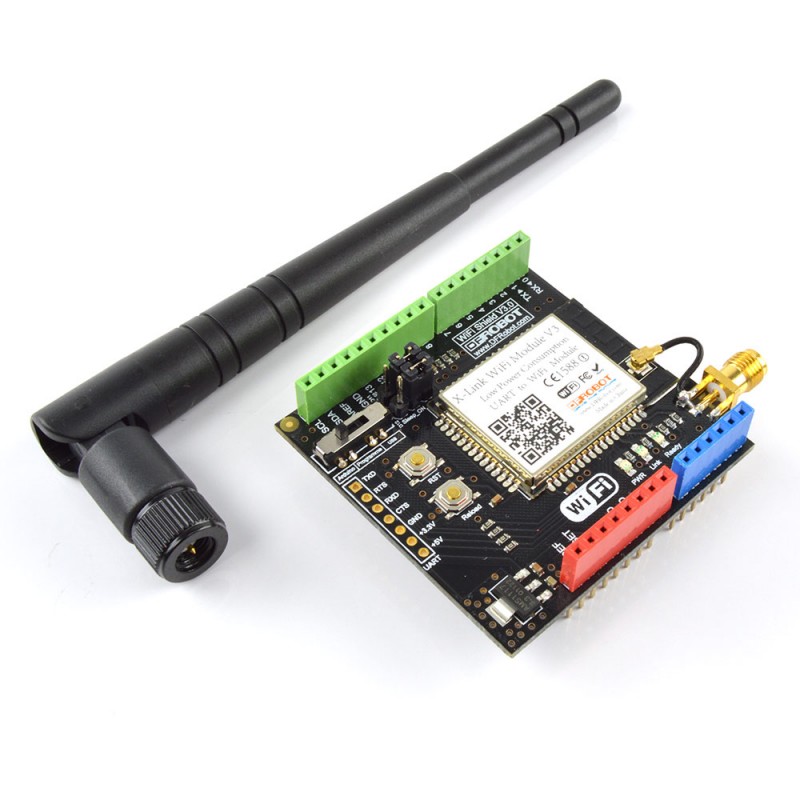

WiFi Shield V3 for Arduino
- Arduino compatible WiFi shield V3 supporting AP+STA dual mode
- Provides UART(TTL) to IEEE802.11b/g/n wireless communication
- Transmission rate: 54Mbps - 1Mbps
- Frequency range: 2.4 - 2.497GHz
WiFi Shield V3 for Arduino
Description
- Arduino compatible WiFi shield V3 supporting AP+STA dual mode
- Provides UART(TTL) to IEEE802.11b/g/n wireless communication
- Transmission rate: 54Mbps - 1Mbps
- Frequency range: 2.4 - 2.497GHz
The WiFi Shield V3 for Arduino supports AP+STA dual mode, and is extremly easy to connect to router network. This module uses dynamic power management to achieve low power consumption capability (standby: <80uA; normal mode average: 8mA; peak: 200mA). This is especially useful in prototyping which not only demands low power consumption, but also requires a standby mode. The module provides UART(TTL) to IEEE802.11b/g/n wireless communication. IEEE802.11n is a newest wireless transmission protocol which enjoys features such as higher transmission speed, wider coverage, stronger compatibility, and much more safety. You only need a mobile phone or Pad to log in the AP network of this module. After logging in the module, it is ready to connect the WIFI network.
Specifications
- Working voltage: 5V
- Output power: 16dBm
- Transmission distance: <400M
Useful Links
PDF File
Dimensions
- Size: 55mm x 53mm x 11mm
- Weight: 50g
